ASI 0210 Surface Mounted Vandal Resistant Paper Towel Dispenser, Satin Finish

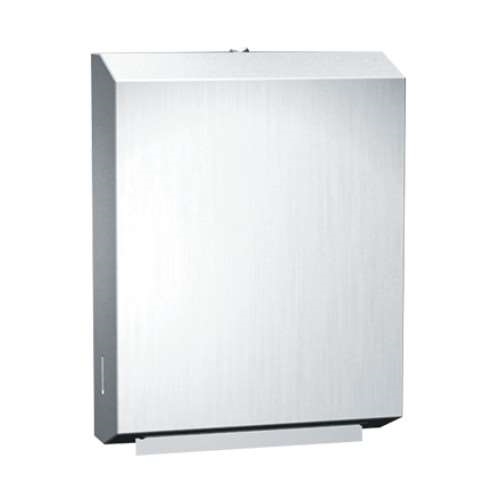

0210 ASI Paper Towel Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $89.80
Our Price: $49.40
Savings: $40.40
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 0210
Qty:

Description Technical Specs

ASI 0210 Surface Mounted Vandal Resistant Paper Towel Dispenser, Satin Stainless Steel Finish
Construction
Surface mounted paper towel dispenser fabricated of 22 gauge type 304 stainless steel alloy 18-8 is of welded construction. Dispensing slot has fully hemmed in rolled edge for snag free dispensing and user safety. Door is attached to the bottom of the unit with a concealed full length 3/16" diameter heavy duty stainless steel multi staked piano hinge and is held closed with a tumbler lock keyed like other ASI washroom equipment. Includes internal stacking guides. All exposed surfaces have satin finish. Capacity: 400 C-Fold or 525 Multifold Towels.

Installation
Unit is surface mounted on wall or partition using five (5) No. 10 x 1-1/2" self-threading pan head screws (by others) through concealed mounting holes provided. Four (4) mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center top mounting hole is horizontal slot for ease of adjustment and vandal resistant locking.

For compliance with 2010 ADA Accessibility Standards, install unit so that towel dispenser slot is 48" maximum AFF if clear floor access is provided or 46" maximum AFF if side reach over an obstruction (vanity) is only provided.

Operation
Towels are self feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Low level of towel supply is indicated from 25% capacity to empty. Locking door prevents unauthorized access or removal.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
