ASI 045210AC Recessed Automatic Touchless Roll Paper Towel Dispenser, Satin Finish

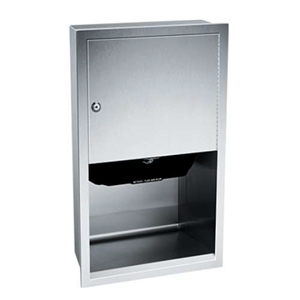

045210AC ASI Paper Towel Dispenser image

List Price: $979.00

Our Price: $538.40

Savings: $440.60

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 045210AC

Qty:

Description

Technical Specs

ASI 045210AC Recessed Automatic Touchless Roll Paper Towel Dispenser, Satin Stainless Steel Finish

Low Voltage Adapter Supplied

Construction
Recessed automatic paper towel dispenser cabinet and frame shall be fabricated of 22 and 20 gage type 304 stainless steel alloy 18-8 is of all welded construction. 18 gage door is attached to the side of the cabinet with a full length 3/16" diameter stainless steel multi staked piano hinge and is held closed with a tumbler lock keyed like other ASI washroom equipment. Door has a full return and hemmed bottom edge for user safety. Face trim is 1" wide formed from one piece with no miters, welding or open seams and has (4) 1/4" square returns to wall. All exposed surfaces have satin finish. Capacity: 8" Standard Core Roll

Installation
RWO: 16" W x 26-5/8" H x 10-1/4" D

Unit is recessed mounted in wall using No. 10 self tapping screws (by others) through concealed mounting holes provided. Power required is 110-240VAC, 50/60 H/z protected by a 15A circuit breaker (by others) for low voltage adapter that draws 1/3 Amp. Power adapter for dispenser unit is supplied, cabled, and plugged into dispenser and is plugged into duplex outlet (by others).

For compliance with ANSI A-117.1, 2015 ABA Standards and 2010 ADA Accessibility Standards, install unit so that top edge of towel dispenser opening is 48" maximum above finished floor (MAX AFF) only if clear floor reach access is provided. Local codes may require mounting so that top of towel dispenser opening is 40" Max AFF (e.g. California UBC/Title 24).

For general utility install unit with top of towel dispenser opening between 49" and 56" AFF.

Note that top of RWO is 11/16" below top of unit.

Operation
Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted. Length of towel dispensed is predetermined by owner by making selections on three (3) three-position switches for length, delay, and economy. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Locking door prevents unauthorized access and roll removal.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Alternate Options
045210A Recessed, Battery Operated
045210A-6 Semi Recessed, Battery Operated
045210A-9 Surface Mounted, Battery Operated
045210AC-6 Semi Recessed, AC Powered
045210AC-9 Surface Mounted, AC Powered
