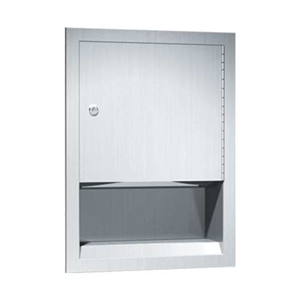

ASI 0457 Recessed ADA Compliant Paper Towel Dispenser, Satin Finish

List Price: $205.10

Our Price: $112.80

Savings: $92.30

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 0457

Qty:

Description

Technical Specs

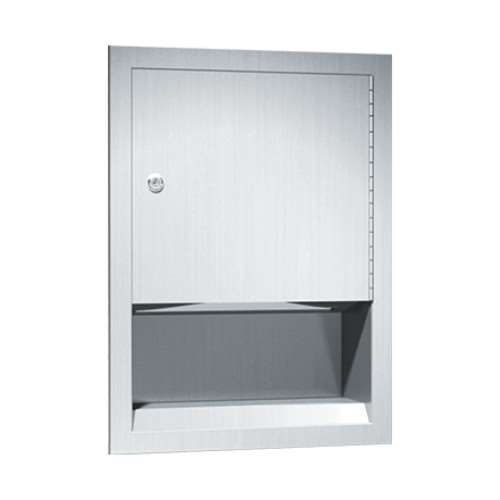

ASI 0457 Recessed ADA Compliant Paper Towel Dispenser, Satin Stainless Steel Finish

Construction
Recessed paper towel dispenser fabricated of 22 gauge type 304 stainless steel alloy 18-8 is of all welded construction. Dispensing slot has fully hemmed in rolled edge for snag free dispensing and user safety. Double pan constructed door with a fiberboard filler is attached to the side of the cabinet with a full length 3/16" diameter stainless steel multi staked piano hinge and is held closed with a tumbler lock keyed like other ASI washroom equipment. Face trim is 1" wide formed from one piece with no mitres, welding or open seams and has a 1/4" square return to wall. All exposed surfaces have satin finish. Capacity: 350 C-Fold or 500 Multifold Towels.

Installation
RWO: 11-1/4" W x 15-3/4" H x 4" D min.
Unit is recessed mounted in wall using No. 10 screws (by others) through concealed mounting holes provided.

For compliance with ADA Accessibility Guidelines, unit should be installed so that towel dispenser slot is 54" maximum above finished floor (AFF) if clear floor side reach access is provided or 48" maximum AFF if clear floor forward reach access only is provided. To comply with CalDAG mounting height, towel dispenser slot should be 40" AFF.

Note that bottom of RWO is 3/4" above bottom of unit.

Operation
Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
