0462-AD-2 ASI Paper Towel Dispenser with Trash Can

Home > Towels/Waste Accessories > Towel/Waste Combination Units >

ASI 0462-AD-2 Semi Recessed Paper Towel Dispenser and Waste Receptacle, Satin

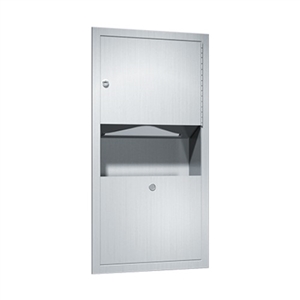

0462-AD-2 ASI Paper Towel Dispenser with Trash Can Image image

Base Recessed Model 0462-AD Shown

List Price: $435.70

Our Price: $239.60

Savings: $196.10

Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days

Product Code: 0462-AD-2

Qty:

Description

Technical Specs

ASI 0462-AD-2 Semi Recessed Paper Towel Dispenser and Waste Receptacle, Satin Finish

Construction
Semi recessed combination paper towel dispenser and waste receptacle fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Dispenser opening has fully deburred edge for snag free dispensing and user safety. Double pan construction door is hinged to cabinet with a full length 3/16" dia. stainless steel multi staked piano hinge and locks to cabinet with tumbler lock keyed like other ASI washroom equipment. Structural assembly of body and door components are of welded construction. Includes 2" collar for semi recessed mounting.

Towel Capacity: 350 C-Fold or 475 Multifold Towels
Waste Capacity: 2 Gallons

Installation
RWO: 12-3/4" W x 26-1/2" H x 2" D
Verify all rough-in dimensions prior to installation. Secure to framing with mounting screws (not included) at holes provided. SM collar is installed on cabinet prior to mounting on wall following procedure described on SM Collar Data Sheet included with shipment.

Operation
Paper towel dispenser will dispense C-fold or multifold paper towels without use of special adapter. Waste container is emptied manually..

Options
Model 0462-AD-9 Surface Mounted Paper Towel and Waste Receptacle Combination Unit
Model 0462-AD Fully Recessed Paper Towel and Waste Receptacle Combination Unit
