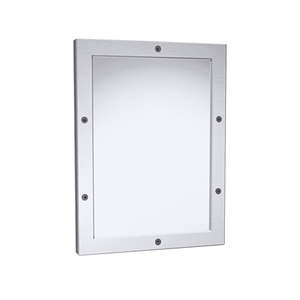

ASI 105-14, 12"W x 16"H Surface Mounted Security Framed Mirror, #8 Polished SS
ASI 105-14 12 x 16 Mirror image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $237.40
Our Price: $130.60
Savings: $106.80
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 105-14
Qty:

Description Technical Specs A Note from the Manufacturer

ASI 105-14, 12"W x 16"H Surface Mounted Security Framed Mirror, #8 Polished Stainless Steel
Construction
Frame is fabricated of 18-8 stainless steel, type 304, 14 gauge welded construction with six (6) mounting holes. Fiberboard backing is provided.

Mirror glazing is 20 gauge type 304 stainless steel with No. 8 mirror polish.

The exposed frame surfaces have a satin finish.

Installation
Unit is surface mounted to wall or partition using six (6) 1/4-20 x 2" (M6 x 50) long pin Torx head machine screws (supplied) into suitable anchors (by others) or alternate wall preparation (by others).

For compliance with ADA Accessibility Guidelines install unit with bottom edge of reflecting surface no higher than 40"" (1016mm) maximum above finished floor. Note: Consult local and national accessibility codes for proper installation guides. Code compliance is the responsibility of the installer.


Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Additional Glazing Options
Glazing types indicated below are particularly suited to applications where frequent breakage and/or security problems exist or are a concern. While more durable, the reflective quality of some of these types of mirrors are not as true as standard plate glass. Call 920-569-0895 x2 or email [email protected] for pricing on these special order options and/or custom sizes.
-13 1/4" thick Tempered Glass, Polished Mirror; Image Quality: Good
-17 1/4" thick Plexiglass, Polished Mirror; Image Quality: Excellent
