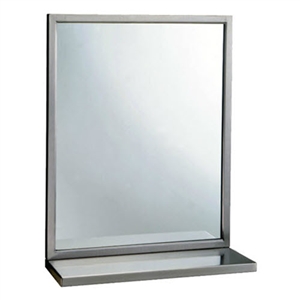

Bobrick B-292 1836, 18" x 36" Angle/Welded Framed Mirror with 4"D Shelf
Bobrick B-292 18 x 36 Mirror image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $544.50
Our Price: $313.09
Savings: $231.41
Manufacturer: Bobrick
Country of Origin: USA
Availability: Usually Ships within 2-3 Business Days


Product Code: B-2921836
Qty:

Description Technical Specs A Note from the Manufacturer

Bobrick B-292 1836, 18" W x 36" H (44 x 91cm) Angle/Welded Framed Mirror with 4"D Shelf, 1/4" Glass, and Theft Resistant Mounting
Construction

Angle Frame Mirror with shelf frame is fabricated of type 304 stainless steel, 3/4" x 3/4" (19 x 19mm) with continuous integral stiffener on all sides and beveled front to hold frame tightly against mirror. Corners of mirror frame are heliarc welded, ground, and polished smooth.

Shelf is fabricated of 18-8, type 304, 18 gauge stainless steel with satin finish. Front corners of shelf are welded, ground, and polished smooth. It is welded to mirror frame. No exposed rivet heads, screws, or fasteners of any type on frame or shelf.

Mirror standard glazing is No. 1 quality, 1/4" (6.4mm) thick float glass, selected for silvering, electrolytically copper-plated by the galvanic process. It is warranted against silver spoilage for 15 years. The back is protected by full size, shock absorbing, water resistant, nonabrasive, polyethylene padding.

The exposed frame and shelf surfaces have a satin finish.

Installation
Mount wall hanger on wall with screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide backing to comply with local building codes, then secure wall hanger with screws (not furnished). When providing a concealed backing, allow backing to cover minimum range of mounting hole locations shown on drawing. For other wall surfaces, provide fiber plugs or expansion shields for use with screws (not furnished), or provide 1/8" (3mm) toggle bolts or expansion bolts.

Snap Locking Design: Hang mirror on wall hanger with all four backplate louvers engaged behind horizontal wall hanger members. To do this, mirror must be centered in front of the wall hanger horizontally, pressed flat against the wall approximately 1" (25mm) above final position and then lowered into final position.

"2S" Tab Design: Comprises of two brackets, while the bottom one is furnished with double side tape. Bottom hanger bracket's mounting holes must be 1" - 1 1/2" above mirror's bottom edge. Note: Bottom hanger bracket is not supposed to engage with louvers of mirror's backplate. Hang mirror on wall top hanger bracket with the top two louvers engaged behind top wall hanger bracket. To do this, mirror must be centered in front of the wall hanger horizontally, pressed only at the top against the wall approx. 1" (25mm) above final position an then lowered into final position. When lowering, pull mirror's bottom edge off the wall by preventing bottom bracket from engaging. Once lowered, mirror must be pressed against wall to engage with double sided tape of lower wall hangar bracket.

Snap Locking Design — Locking devices automatically secure mirror to concealed wall hanger when it is lowered into final position. Locking devices may be unlocked by inserting two flat blade screwdrivers behind each side of mirror near the bottom or under the bottom of the mirror and pulling mirror bottom forward and then up.

"2S" Tab Design — Double-sided tape secures mirror to concealed wall hanger by pressing mirror against double sided tape of lower hanger once it is lowered into final position.

Warranty
Fifteen (15) Year Manufacturer's Warranty - Warranted against silver spoilage under normal indoor atmospheric conditions from date of sale.
