ASI 20452 Roval™ Recessed ADA Compliant Paper Towel Dispenser, Satin Finish

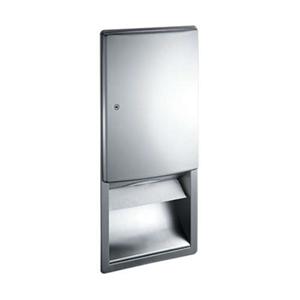

20452 ASI Paper Towel Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $593.90
Our Price: $326.60
Savings: $267.30
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 20452
Qty:

Description Technical Specs

ASI 20452 Roval™ Recessed ADA Compliant Paper Towel Dispenser, Satin Stainless Steel Finish
Construction
Recessed paper towel dispenser fabricated of 22 gauge type 304 stainless steel alloy 18-8 is of welded construction. Dispensing slot has fully hemmed in rolled edge for snag free dispensing and user safety. 18 gauge door is attached to the side of the cabinet with a full length 9/64" diameter stainless steel multi staked piano hinge and is held closed with a flush rimless tumbler lock keyed like other ASI washroom equipment. All exposed surfaces have satin finish. Capacity: 600 C-Fold or 800 Multifold Towels.

Installation
RWO: 11-1/4" W x 26-7/16" H x 3-15/16" D min.

Unit is recessed mounted in wall using four (4) No. 8 self tapping screws (by others) through concealed mounting holes provided.

For compliance with ADA Accessibility Guidelines, install unit so that towel dispenser slot is 48" (1219) maximum above finished floor (AFF) if clear floor reach access is provided.

Operation
Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Locked door prevents unauthorized access or removal.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
