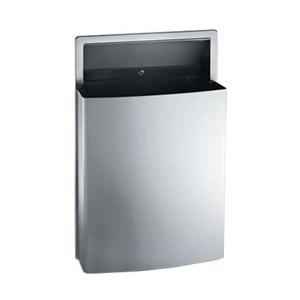

ASI 20458 Roval ™ Semi Recessed Open Top Waste Receptacle, Satin Finish
20458 ASI Countertop Disposal Door image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $678.60
Our Price: $373.20
Savings: $305.40
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Product Code: 20458
Qty:

Description Technical Specs

ASI 20458 Roval ™ Semi Recessed Open Top Waste Receptacle, Satin Finish
Projects 4-15/16" and Recesses 4", Capacity: 11.2 Gallons

Construction
Semi recessed waste receptacle has frame and cabinet fabricated of 22 gauge stainless steel type 304 alloy 18-8. The cabinet has bowed front face and gently radiused edges. Waste receptacle with internal bag hanger hooks is fabricated of 20 gauge type 304 stainless steel alloy 18-8 with a fully hemmed top edge. All exposed surfaces are satin finish. Unit has no exposed fastening devices or spot welded seams. Tumbler lock keyed like other ASI washroom equipment retains the waste container in the cabinet. Face trim plate is 1" wide formed from one piece of with no miters and has 1/8" radiused return to wall. Capacity: 11.2 Gallons

Installation
RWO required is 15-3/4" W x 26" H x 3-15/16" RWO Depth

Mount unit in wall recess using № 10 self-tapping flat head screws (by others) through concealed mounting holes provided. Note that top of rough wall opening (RWO) is 7/8" below top of unit.

For compliance with ADA Accessibility Guidelines install unit so that top edge of waste receptacle is below 48" maximum above finished floor (AFF) if clear floor reach access is provided.

Install unit for general utility with bottom trim edge 16" AFF.

Operation
Unit is emptied by removing disposable bag or reusable liner (both supplied by others). Keyed tumbler lock prevents unauthorized removal.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
