ASI 20469 Roval™ Recessed Paper Towel Dispenser and Waste Receptacle

20469 ASI Paper Towel Dispenser with Trash Can Image image

List Price: $1,279.90

Our Price: $704.00

Savings: $575.90

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 20469

Qty:

Description

Technical Specs

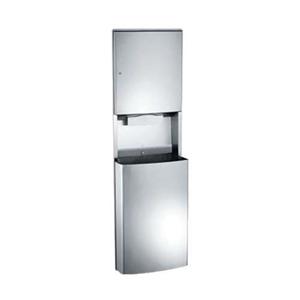

ASI 20469 Roval™ Recessed Paper Towel Dispenser and Waste Receptacle

Construction
Recessed combination paper towel dispenser and waste receptacle fabricated of 18 and 22 gauge stainless steel with exposed surfaces in satin finish. Dispenser opening has fully hemmed-in rolled edge for snag free dispensing and user safety. Face trim is one piece construction, 1" wide with a 1/8" radiused return to wall. Door is hinged to cabinet with a full length 1/8" dia. stainless steel multi staked piano hinge and locks to cabinet with a flush rimless tumbler lock keyed like other ASI washroom equipment. Waste receptacle with internal bag hanger hooks has fully hemmed top edge for safety and a rear handle for service ease.
Towel Capacity: 600 C-Fold or 800 Multifold Towels
Waste Capacity: 14.8 Gallons

Installation
RWO: 15-5/8" W x 54-3/8" H x 4" D
Verify all rough-in dimensions prior to installation. Secure to framing with No. 10 self tapping flat head screws (not included) at concealed holes provided. Note that top of RWO is 27/32" below top of unit.

Operation
Paper towel dispenser will dispense C-fold or multifold paper towels. Paper towels are replenished by unlocking the door and refilling when partially or fully empty. Waste container is emptied manually by unlocking the door. Locking compartment and receptacle container prevents unauthorized access or removal.

Options
Model 20469-9 Surface Mounted Paper Towel and Waste Receptacle Combination Unit
