6452-9 ASI Paper Towel Dispenser

Home > Towels/Waste Accessories > Towel Dispensers >

ASI 6452-9 Simplicity Collection Surface Mt ADA Compliant Towel Disp, Satin Finish

List Price: $641.60

Our Price: $352.90

Savings: $288.70

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 6452-9

Qty:

Description

Technical Specs

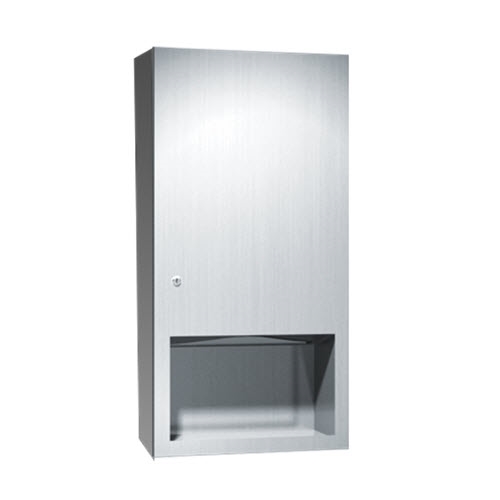

ASI 6452-9 Simplicity Collection Surface Mounted ADA Compliant Paper Towel Dispenser, Satin Stainless Steel Finish

Construction
Surface mounted paper towel dispenser fabricated of 20 gauge type 304 stainless steel alloy 18-8 is of welded construction. Dispensing slot has fully hemmed in rolled edge for snag free dispensing and user safety. Full face 18 gauge door with 1/2" square return to wall and is attached to the side of the cabinet with a full length 3/16" diameter stainless steel multi staked piano hinge and is held closed with a tumbler lock keyed like other ASI washroom equipment. Unit is supplied with surface mount collar (skirt) to convert to surface mounting. All exposed surfaces have satin finish. Capacity: 600 C-Fold or 800 Multifold Towels.

Installation
Unit is surface mounted to wall using four (4) No. 10 screws (by others) through concealed mounting holes provided. SM collar is installed on cabinet prior to mounting to wall. Instructions included with shipment.

For compliance with ADA Accessibility Guidelines, unit should be installed so that towel dispenser slot is 54" maximum above finished floor (AFF) if clear floor side reach access is provided or 48" maximum AFF if clear floor forward reach access only is provided. For general utility mount unit 42′′ (1067mm) from top of finished floor to bottom of unit.

Operation
Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
