ASI 6462-2 Simplicity Collection Semi Recessed Towel Dispenser/Waste Receptacle

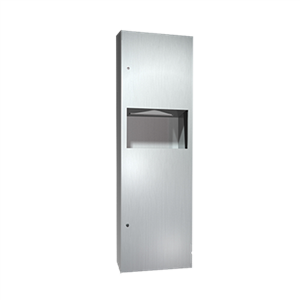

6462-2 ASI Paper Towel Dispenser with Trash Can image

List Price: $1,154.60

Our Price: $635.00

Savings: $519.60

Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days

Product Code: 6462-2

Qty:

Description

Technical Specs

ASI 6462-2 Simplicity Collection Semi Recessed Towel Dispenser/Waste Receptacle

Construction
Semi recessed combination paper towel dispenser and waste receptacle full face door is fabricated of 18 gauge stainless steel and cabinet of 20 gauge stainless steel with exposed surfaces in satin finish. Dispenser opening has fully deburred edge for snag free dispensing and user safety. Adjustable guide allows dispensing of single fold, multi fold, and c fold towels. Door is attached to cabinet with a full length 3/16" dia. stainless steel multi staked piano hinge and locks to cabinet with two (2) tumbler locks keyed like other ASI washroom equipment. Waste receptacle has hemmed edges and a rolled edge finger hole for ease of service removal and safety. Structural assembly of body and door components are of welded construction. 2" stainless steel collar included for semi recessed mounting.
Towel Capacity: 600 C-Fold, 800 Multifold, or 1100 Single-fold Towels
Waste Capacity: 9 Gallons

Installation
RWO: 15-3/4" W x 52-1/2" H x 4" D
Mount unit in wall recess with No. 10 self tapping screws (by others) through concealed mounting holes provided. Note that top of RWO is 3/4" below top of unit. Stainless steel collar is installed to cabinet prior to mounting in wall recess following instructions included with unit.

Operation
Paper towel dispenser will dispense single fold, C-fold, or multifold paper towels with use of adjustable guide (provided). Towels are fed through dispenser opening by manually pulling through. Refill dispenser and empty waste receptacle by unlocking and opening full face door. Locked door prevents unauthorized access or removal.

Options
Model 6462 Recessed Paper Towel and Waste Receptacle Combination Unit
Model 6462-9 Surface Mounted Paper Towel and Waste Receptacle Combination Unit
