ASI 64672-1 Recessed Three in One Towel Dispenser/Hand Dryer/Waste Receptacle, 110-120V

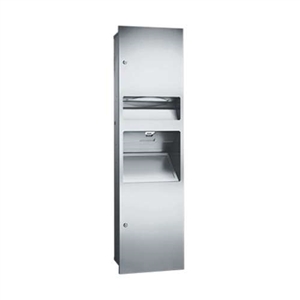

64672-1 ASI Paper Towel Dispenser with Trash Can image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $1,858.30
Our Price: $1,022.10
Savings: $836.20
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Product Code: 64672-1
Qty:

Description Technical Specs

ASI 64672-1 Recessed Three in One Towel Dispenser, Hand Dryer, and Waste Receptacle Combination Unit - 110-120V
Construction
Recessed 3-in-1 combination paper towel dispenser, hand dryer, and waste receptacle full face door is fabricated of 18 gauge stainless steel and cabinet of 20 gauge stainless steel with exposed surfaces in satin finish. Cabinet has 5/8" wide perimeter trim to lay flush against wall and has no exposed fastening devices. Dispenser opening has fully deburred edge for snag free dispensing and user safety. Door is attached to cabinet with a full length 3/16" dia. stainless steel multi staked piano hinge and locks to cabinet with two (2) tumbler locks keyed like other ASI washroom equipment. Waste receptacle has piano hinged mounted closed top with spring hinge closed flap door and hemmed edges for safety. Automatic hand dryer operates with IR sensor.
Towel Capacity: 400 C-Fold or 500 Multifold
Waste Capacity: 6.8 Gallons

Installation
RWO: 14-3/32" W x 54-3/8" H x 7-1/4" D
Mount unit in wall recess with No. 10 (M5) self tapping screws (by others) through concealed mounting holes provided. See unit diagram for electrical service cable rough in location. Electric service of 110-120VAC 20A 50/60Hz (provided by others) is brought to RWO location and hooke up (by others) in accordance with schematic and OM and IG provided with heavy duty back plate with recessed socket pan head tamper resistant pin hex bolts (supplied) with security pin hex driver (supplied). Note that top of RWO is 1/2" below top of unit.

Operation
Paper towel dispenser will dispense C-fold or multifold paper towels fed through dispenser opening by manually pulling through. Hand Dryer is activated when user places hands in the sensor zone indicated by graphic on door. Drying time is automatically initiated as long as movement is sensed up to a maximum of two (2) minutes to prevent accidental hold on. Dryer automatically shuts off after time out when hands are removed from the sensor zone. Refill dispenser and empty waste receptacle by unlocking and opening door. Locked door prevents unauthorized access or removal.

Options
Model 64672-2 Recessed 3-in-1 Paper Towel, Hand Dryer, and Waste Receptacle Combination Unit - 220-240V
