ASI 64672-41PC Simplicity™ Collection Completely Recessed Three in One Towel Dispenser/Hand Dryer/Waste Receptacle, Matte Black Finish

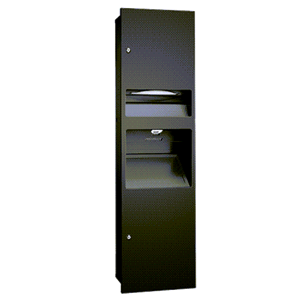

64672-41PC ASI Paper Towel Dispenser with Trash Can image

Alternative Views:

List Price: $2,401.60

Our Price: $1,320.90

Savings: $1,080.70

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 64672-41PC

Voltage*:

110-120V
208-240V

Qty:

Description

Technical Specs

ASI 64672-41PC Simplicity™ Collection Completely Recessed Three in One Towel Dispenser/Hand Dryer/Waste Receptacle, Matte Black Finish

Construction
Recessed Combo Three-in-One Paper Towel Dispenser with Waste Receptacle and Provision for Automatic Electric Hand Dryer (by others) shall hold and dispense 500 standard multi-fold or 400 standard C-fold paper towels and shall have a waste capacity of 6.8 gal. Cabinet, door, dispenser, and waste receptacle shall be type 304 stainless steel alloy 18-8. All exposed surfaces shall have a matte black finish. Cabinet shall be 20 gauge with a 5/8" wide perimeter trim to lay flush against wall and shall have no exposed fastening devices or visible seams. Full-face door shall be 18 gauge, fabricated from one piece with no miters or seams on face and shall have1/2" square returns to the wall. Door shall be attached to cabinet body with a full length 3/16" diameter stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Waste receptacle shall have piano-hinge mounted closed top with spring-hinge closed flap door and hemmed edges for safety. Structural assembly of all cabinet components shall be welded construction. Hand dryer (by others) shall operate automatically from IR sensor that shall activate dryer when hands are placed in sensor zone.
Towel Capacity: 400 C-Fold or 500 Multifold
Waste Capacity: 6.8 Gallons

Installation

Rough Wall Opening RWO: 14-3/32" W x 54-3/8" H x 7-1/4" D

Unit is mounted in wall recess using № 10 self tapping screws (by others) through concealed mounting holes provided. For compliance with HC Accessibility standards requiring towel dispenser to be below 48" AFF locate top of RWO at 63-1/2" AFF. See unit diagram for electrical service cable rough-in location. Electric service (provided by others) is brought to RWO at location indicated on diagram above and is hooked up (by others) in accordance with schematic and OM & IG provided with dryer unit. Dryer is mounted to chassis wiring box with four (4) 1/4-20 pan head screws (provided by others) through bushings in heavy-duty back plate. Electrical service is connected (by electrician) prior to installing cover. Cover is secured to back plate with recessed socket-pan-head tamper resistant pin-hex bolts (supplied by others) with security pin-hex driver (supplied by others). Note that top of RWO is 1/2" below top of unit.

Operation
Paper towels are manually withdrawn through dispensing slot. Unit will continue to feed towels properly when reloaded with a partial load in place. User activates dryer by placing hands in the sensor zone indicated by graphic on door. Drying time is automatically initiated as long as movement is sensed up to a maximum of two (2) minutes to prevent accidental hold-on. Dryer automatically shuts off after time-out when hands are removed from the sensor zone. Refill dispenser by opening door and replacing towels for an empty or partially empty unit. Dispenser supply is replenished and waste container is emptied manually on cycles determined by maintenance needs. Full cover and spring-hinge flap door on waste receptacle prevents unsightly overloads.
