64676-2 ASI Paper Towel Dispenser with Trash Can

Home > Towels/Waste Accessories > Towel/Waste Combination Units >

ASI 64676-2 Simplicity Collection Semi Recessed Towel Dispenser/Waste Receptacle

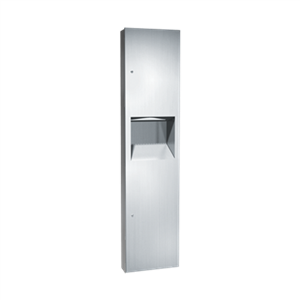

64676-2 ASI Paper Towel Dispenser with Trash Can image

List Price: $819.20

Our Price: $450.50

Savings: $368.70

Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days

Product Code: 64676-2

Qty:

Description

Technical Specs

ASI 64676-2 Simplicity Collection Semi Recessed Paper Towel Dispenser/Waste Receptacle

Construction
Semi recessed combination paper towel dispenser and waste receptacle full face door is fabricated of 18 gauge stainless steel and cabinet of 20 gauge stainless steel with exposed surfaces in satin finish. Cabinet has 1" wide perimeter trim to lay flush against wall and has no exposed fastening devices. Dispenser opening has fully deburred edge for snag free dispensing and user safety. Adjustable guide is provided to allow dispensing of single fold, multi fold, or C fold paper towels. Door is attached to cabinet with a full length 3/16" dia. stainless steel multi staked piano hinge and locks to cabinet with two (2) tumbler locks keyed like other ASI washroom equipment. Waste receptacle door is attached to cabinet with a spring loaded stainless steel piano hinge and has international waste symbol on face. Waste receptacle has hemmed edges for safety. 2" stainless steel collar is included for semi recessed mounting.
Towel Capacity: 600 C-Fold, 800 Multifold, or 1100 Single Fold Towels
Waste Capacity: 7 Gallons

Installation
RWO: 11-1/2" W x 53-1/2" H x 4" D
Mount unit in wall recess with No. 10 self tapping screws (by others) through concealed mounting holes provided. Note that top of RWO is 3/4" below top of unit. Stainless steel collar is to be installed on cabinet prior to mounting in wall recess following instructions provided with the unit.

Operation
Paper towel dispenser will dispense C-fold, multifold, or single fold paper towels with use of adjustable guide (provided). Towels are fed through dispenser opening by manually pulling through. Refill dispenser and empty waste receptacle by unlocking and opening door. Locked door prevents unauthorized access or removal.

Options
Model 64676 Recessed Paper Towel and Waste Receptacle Combination Unit
Model 64676-9 Surface Mounted Paper Towel and Waste Receptacle Combination Unit
