ASI 6474-2 Semi Recessed ADA Compliant Waste Receptacle, Satin Finish

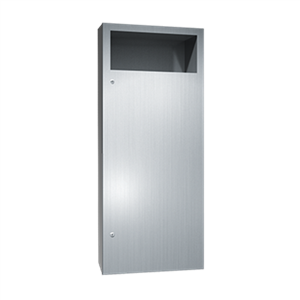

6474-2 ASI Commercial Trash Can image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $910.80
Our Price: $501.00
Savings: $409.80
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 6474-2
Qty:

Description Technical Specs

ASI 6474-2 Semi Recessed ADA Compliant Theft Resistant Waste Receptacle, Satin Finish
Projects 2-1/2" and Recesses 4", Capacity: 12 Gallons

Construction
Semi recessed waste receptacle has 20 gauge cabinet, 18 gauge door, 22 gauge skirt, and waste receptacle fabricated of type 304 alloy 18-8 stainless steel. Full face door formed from one piece no miters, welding or seams on face with a 1/2" return to wall. Cabinet has no exposed fastening devices or spot welded seams. Door is attached to cabinet with a 3/16" dia. heavy duty multi tasked stainless steel piano hinge and is held closed with two (2) tumbler locks keyed like other ASI washroom equipment. Waste container is fabricated of heavy duty stainless steel with a finger grip for easy removal. SR-2 skirt is included to convert unit to semi recessed mounting. All exposed surfaces are satin finish. Capacity: 12 Gallons

Installation
RWO required is 15-3/4" W x 38-1/2" H x 4-1/4" D

Mount unit in wall recess using Four (4) № 10 self-threading flat, oval, or pan head screws (by others) through mounting holes provided.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards install unit so that center of waste receptacle opening is 48" (1219 mm) Max Above Finished Floor (AFF). SR collar is installed on cabinet prior to mounting in wall recess following procedure described on SR Collar Data Sheet.

Operation
Unit is emptied by unlocking door with key provided and removing waste container. Keyed tumbler lock prevents unauthorized removal.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
