ASI 8370 Manual Lever Operated Towel Dispenser Mechanism

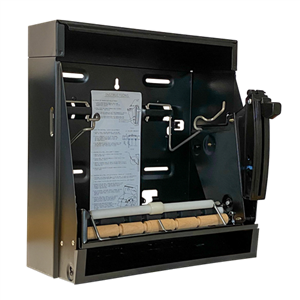

8370 Manual Lever Operated Towel Dispenser Mechanism image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $310.60
Our Price: $206.65
Savings: $103.95
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 8370
Qty:

Description Technical Specs

ASI 8370 Manual Lever Operated Towel Dispenser Mechanism
Construction
Manual Lever Operated Towel Dispenser Mechanism shall hold one 8" or 9" wide x 8" diameter standard towel roll up to 800 ft. long and one 8" or 9" wide stub roll up to 4" diameter. Unit shall be comprised of a baked enamel coated steel housing and mechanism base plate with internal plated steel, plastic, rubber, wood, and stainless steel parts. A lever operated drive mechanism shall be supplied to dispense roll towels in one (1) of three (3) preset lengths chosen by owner. An installation label shall be provided permanently affixed to inside rear panel to illustrate correct paper loading, length preset pin selection, and stub roll transfer. Unit is designed for installation into lever manual paper towel dispenser cabinets manufactured by American Specialties, Inc.

Installation
Assemble unit onto cabinet back plate using 1/4"-20 x 3/8" Philips pan head screws supplied in cabinet into weldnut threaded mounting holes provided.

For compliance with 2010 ADA Accessibility standards, install unit so that towel dispenser lever is 48" maximum above finished floor (MAX AFF).

Operation
Towels are fed by lever action until supply is depleted. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length. Unit may be reloaded with a full roll to automatically start when finished with an existing partial (stub) roll. Instructions for paper loading for correct automatic roll transfer are included in unit on label inside back.
