8523AC ASI Paper Towel Dispenser

Home > Towels/Waste Accessories > Towel Dispensers >

ASI 8523AC Omar Collection Surface Mt Sensor Operated Roll Towel Disp, Satin Finish

List Price: $771.90

Our Price: $424.50

Savings: $347.40

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 8523AC

Qty:

Description

Technical Specs

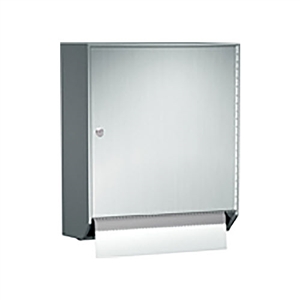

ASI 8523AC Omar Collection Surface Mounted Sensor Operated Roll Paper Towel Dispenser, Satin Stainless Steel Finish

Low Voltage (110-240VAC) Adapter Supplied

Construction
Automatic touchless roll paper towel dispenser is fabricated of 22 gauge type 304 stainless steel, 18-8 alloy of welded construction. 18 gauge stainless steel door has full return and formed sill at bottom edge for user safety. It is secured to cabinet with full length 3/16" diameter stainless steel piano hinge and a tumbler lock keyed like other ASI washroom equipment. Exposed surfaces have satin finish. Capacity: 8" or 9" Standard Core Roll

Installation
Provide adequate in-wall reinforcement (by others) in drywall construction to hold mounted unit in-service after wall is finished. Provide appropriate anchors (by others) to suit wall and field conditions for installation onto walls other than new drywall. Mount unit on wall using № 10 or 1/4" (M5 or M6) x 1-1/2" self threading pan head or flat head screws (by others) or other suitable fasteners (by others) through concealed mounting holes provided. Power is supplied by code approved cable or conduit (by others) to RWO at location indicated on diagram and terminated in utility duplex outlet box (provided) inside cabinet. Power required is 110-240VAC, 50/60 Hz protected by a 15A circuit breaker (by others) for low voltage adapter that draws 1/3 Amp. Power adapter for dispenser unit is supplied, cabled, and plugged into dispenser and is plugged into duplex outlet (by others).

For compliance with ANSI A-117.1, 2015 ABA Standards and 2010 ADA Accessibility Standards install unit so that top edge of towel dispenser opening is 48" maximum above finished floor (MAX AFF) only if clear floor reach access is provided. Be advised that local codes may require mounting so that top of towel dispenser opening is 40" MAX AFF (e.g. California UBC/Title 24).

For general utility install unit with top of towel dispenser opening between 49" and 56" AFF.

Operation
Towels are dispensed one length at a time automatically when hands are placed in sensor zone from 1/2" below sensor to 4-1/2" below sensor until supply is depleted. Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished by maintenance needs. Locking door prevents unauthorized access and roll removal.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
