ASI 0031 Recessed ADA compliant Multi-Roll Toilet Tissue Dispenser, Satin

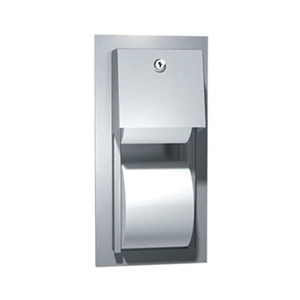

ASI 0031 Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $170.20
Our Price: $93.60
Savings: $76.60
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 0031
Qty:

Description Technical Specs

ASI 0031 Recessed ADA Complinat Multi-Roll Toilet Tissue Dispenser, Satin Finish
Construction
Recessed multi roll toilet paper roll holder is fabricated of alloy 18-8 stainless steel, type 304 with the assembly of body and door components being welded construction. All exposed surfaces are satin finish. The internal mechanism levers are molded high impact resistant plastic for smooth operation. The door is held closed with a tumbler lock keyed like other ASI washroom equipment. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Two (2) R-004 rollers are included.

Installation

RWO (Rough Wall Opening) required is 6-1/4" W x 12-1/4" H x 3-3/8" D min. (159 x 311 x 86)

Recess mount unit in wall using for (4) No. 10 self tapping screws (by others). Top two mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Bottom two mounting holes are horizontal slots for ease of adjustment.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards install unit with axis of bottom roller 15" min above finished floor to 48" max above finished floor and centerline of dispenser shall be 7" min to 9" max.

Operation
Reloading instructions are printed on graphic label inside door. Bottom roll is depleted prior to top roll automatically dropping into lower position for use. The empty rollers can not be removed without a key unlocking the door. Holds and dispenses two (2) standard or two (2) 5-1/4" diameter tissue rolls.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
