ASI 0135 Turbo-Tuff™ Recessed Automatic ADA Compliant Hand Dryer, Satin Finish

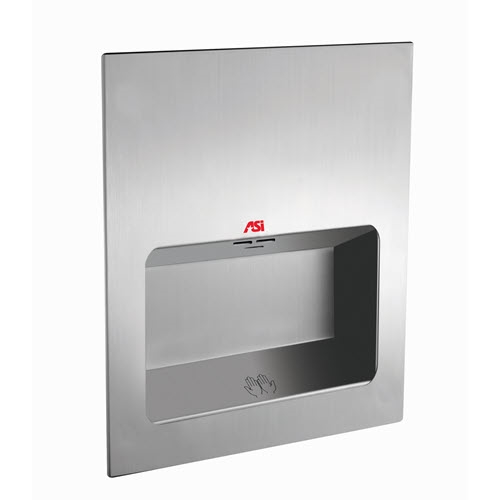

ASI 0135 Hand Dryer image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $1,034.80
Our Price: $569.10
Savings: $465.70
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 0135


Voltage*: 		110-120V
208-240V
277V

Qty:
Description Technical Specs A Note from the Manufacturer

ASI 0135 Turbo-Tuff™ Recessed ADA Compliant Hand Dryer, Satin Finish
Construction
Turbo Tuff Recessed hand dryer activates from an IR sensor when hands are placed in the activation zone. The cover and hand drying chamber are 18 gauge type 304 stainless steel alloy 18-8. All exposed surfaces have a satin finish. The cabinet is 20 gauge galvanized steel with a 1/2" wide perimeter trim to lay flush against the wall and has concealed pin hex security screws to close the cover. Air intake slots do not allow access to internal parts. The motor and heating element have internal resetting automatic thermal protection. Circuitry has self adjusting time out and fail safe off protection controlled by a microprocessor that detects and rejects false signals and automatically self calibrates to provide uniform sensitivity over its entire life span. Fixed directional air vanes are heavy duty, rust proof, and tamper resistant.

Installation

RWO required: 12-5/16" W x 15-3/16" H x 3-7/8" D minimum
Mount unit cabinet in wall recess with four (4) № 10 (M5) screws (not supplied) into suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. For masonry walls, use expansion bolts or anchors for 1/4" (M6) screws. See unit diagram for electrical service cable rough-in location. Electric service of 100-277VAC 20A 50/60 Hz (provided by others) is brought to rough wall opening (RWO) at location for dryer indicated on diagram above and is hooked up (by others) in accordance with schematic and OM provided with unit. Electrical service is supplied and connected (by others) prior to installing cover. Cover is secured to cabinet with two (2) hex socket captive truss flange head screws (supplied).

For compliance with ICC/ANSI A-117.1 and 2010 ADA Accessibility Standards, install unit with top of dryer hand chamber 48" maximum above finished floor (MAX AFF) if clear floor forward or side reach access is provided or 46" MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over an obstruction (e.g. commode) with reach depth greater than 20" and less than 25" is only provided.
For general utility install unit so that top of dryer hand chamber is 44" to 50" AFF.

Note: that top of RWO is 9/32" below top of unit. For installation of two or more dryers, dryers should be no closer than 24" on center.

Operation
User activates dryer by placing hands under sensor. Dryer automatically shuts off after time-out when user removes hands from sensor activation zone.

Warranty
Unit shall be warranted against defects in materials or workmanship for three (3) years per the manufacturer, American Specialties, Inc.
