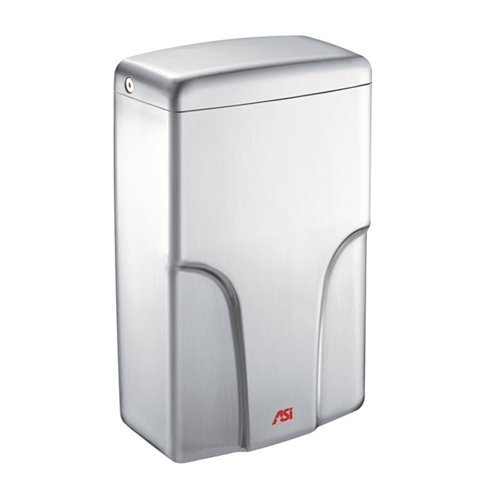

ASI 0196-93 Turbo Pro™ Surface Mounted High Speed Hand Dryer with HEPA Filter, Satin Stainless Finish

Alternative Views:

List Price: $999.20

Our Price: $549.50

Savings: $449.70

Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days

Product Code: 0196-93

Voltage*:

110-120V
220-240V

Qty:

Description

Technical Specs

ASI 0196-93 Turbo Pro™ Surface Mounted High Speed Hand Dryer with HEPA Filter, Satin Stainless Steel Finish

Cover and Voltage Options
Matte Black Cover - see model 0196-41
White Porcelain Enamel Cover - see model 0196-00

Construction

TURBO PRO™ High-Speed Hand Dryer with HEPA filter operates automatically from IR sensor activated by beam reflection from objects placed in sensing zone. Motor and heating element shall have internal resetting automatic thermal protection. Unit shall develop 32-42 CFM (55-72 m3 /h) of heated air and shall provide drying time of less than 15 seconds. Warm air output temperature and velocity shall be adjustable by owner. Cover shall be heavy-duty, one piece formed stainless steel 1/16" with all exposed surfaces satin finished (-93) or one piece formed steel 1/16" thick with all exposed surfaces having white porcelain enamel (-00) or matte black powder coated finish (-41) (by option specified). Fixed directional air nozzle shall be heavy-duty, rust proof and highly tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self adjusting time out and fail safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self-calibrate to provide uniform sensitivity over its entire life span. Sensitivity shall be adjustable by owner to suit mounting conditions and intended usage population. Entire unit shall be internally electrically grounded. Motor speed shall be adjustable by owner in range between maximum power and maximum efficiency. Dryer unit shall have C-UL-US®, CE, and TÜV approval and be listed under the re-examination services of Underwriters Laboratories, Inc.

Installation
Surface mount unit on wall with four (4) 1/4" washers and screws or bolts (supplied) through holes (provided) in a corrosion protected steel back plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Electrical service is supplied and connected (by others) prior to installing cover. Cover is secured to back plate with recessed, pin-hex socket head cap screws (supplied) on bottom.

For compliance with ICC/ANSI A -117.1-2003 and 2010 ADA Accessibility Standards for adults, install unit with bottom of sensor lens 48" MAX AFF if unobstructed reach access is provided or 44" MAX AFF if forward reach over an obstruction (e.g. vanity or commode) with reach depth greater than 20" and less than 25" is only provided.

For general utility, install unit so that sensor lens is 44" to 54" AFF.

Operation

User activates dryer by placing hands under sensor. Dryer automatically shuts off after time-out when user removes hands from sensor activation zone.

Warranty
Unit shall be warranted against defects in materials or workmanship for five (5) years per the manufacturer, American Specialties, Inc
