ASI 0332-CD Deck Mounted Manual Liquid Soap Dispenser with 6" Spout, 20 oz

List Price: $78.80

Our Price: $43.30

Savings: $35.50

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 0332-CD

Qty:

Description

Technical Specs

A Note from the Manufacturer

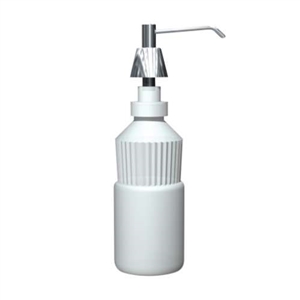

ASI 0332-CD Deck Mounted Manual Liquid Soap Dispenser with 6" Spout, 20 oz, Bright Polish

Soap Recommendation
Liquid soap
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 50-2500

Construction
Lavatory mounted soap dispenser is fabricated of stainless steel on dispenser stem and 6" spout. Valve body, internal parts, basin nut, threaded shank, and globe adapter are molded plastic. Soap container is translucent, shatter resistant polyethylene. Capacity: 20 oz.

Installation
Unit is usually located next to a flush mounted lavatory. It is installed through a 7/8" diameter cut out (supplied by others) in the counter top. The adjustable shank allows for installation in counter tops up to 3-1/2" thick.

Operation
Soap is manually dispensed by pushing down on the spout stem. Valve operation complies with 2010 ADA Accessibility Standards and ICC/ANSI A.117.1 by requiring no more than 5 lbs. pressure to actuate without grasping or twisting by operator. Unit can be refilled by using the special refill key to unlock the escutcheon and remove the valve body with dip tube from the shank to expose reservoir opening.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Foam Soap Dispenser Options
Model 0336 Foam Soap Dispenser with 4" spout and 34 oz globe
Model 0336-D Foam Soap Dispenser with 6" spout and 34 oz globe

Liquid Soap Dispenser Options
Model 0332 Liquid Soap Dispenser has 34 oz globe with 4" spout
Model 0332-C Liquid Soap Dispenser has 20 oz globe with 4" spout
Model 0332-D Liquid Soap Dispenser has 34 oz globe with 6" spout
Model 0332-CD Liquid Soap Dispenser has 20 oz globe with 6" spout
