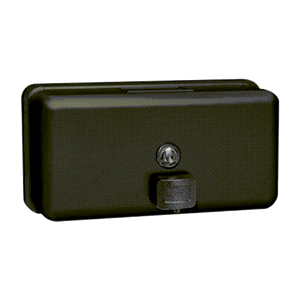

ASI 0345-41 Liquid Soap Dispenser

Home > Soap Dispensers > Wall Mounted >

ASI 0345-41 Horizontal Surface Mount Manual Liquid Soap Dispenser, 40 oz, Matte Black Finish

List Price: $76.90

Our Price: $42.30

Savings: $34.60

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 0345-41

Qty:

Description

Technical Specs

A Note from the Manufacturer

ASI 0345-41 Horizontal Surface Mount Manual Liquid Soap Dispenser, 40 oz, Matte Black Finish

Soap Recommendation
Liquid soap
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 100-3500

Construction
Surface mounted horizontal liquid soap dispenser is fabricated of 20 gauge stainless steel, alloy 18-8, type 304. All exposed surfaces have a matte black finish. Soap valve is constructed of a plastic valve body and push button with stainless steel and plastic internal parts.
Capacity: 40 oz.

Installation
Unit is secured to a wall plate which is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Secure unit to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.

Recommended installation for general utility is 42" (1066mm) AFF or 6" (152mm) minimum above wash basin.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with centerline of valve button no higher than 48" AFF.

Operation
Soap is manually dispensed by depressing push button. Valve operation complies with 2010 ADA Accessibility Standards and ANSI A.117.1 by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit is refilled through hinged door at top requiring special key (furnished) to open.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
