ASI 0346 Vertical Surface Mount Manual Liquid Soap Dispenser for Showers, 40 oz

List Price: $114.40

Our Price: $62.90

Savings: $51.50

Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days

Product Code: 0346

Qty:

Description

Technical Specs

A Note from the Manufacturer

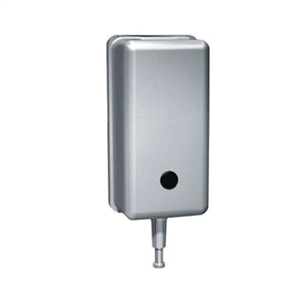

ASI 0346 Vertical Surface Mount Manual Liquid Soap Dispenser for Showers, 40 oz, Satin Finish

Soap Recommendation
Liquid soap
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 100-3500

Construction
Surface mounted vertical liquid soap dispenser is fabricated of 20 gauge stainless steel, alloy 18-8, type 304. All exposed surfaces have No. 4 satin finish. Soap valve is constructed of a chrome plated brass valve body with stainless steel and plastic internal parts.
Capacity: 40 oz.

Installation
Unit is surface mounted to wall or partition by means of a bracket and screws (supplied). Unit is secured to interlocking wedge bracket and locked in place by means of a locking screw installed through tamper resistant refill cap.

Recommended installation for general utility is 44" (1118 mm) AFF or 8" (203mm) minimum above wash basin.

Operation
Soap is manually dispensed by depressing push button. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit is refilled through hinged door at top requiring special key (furnished) to open.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
