ASI 0356 Surface Mounted Manual Push Up Liquid Soap Dispenser, 24 oz, Translucent

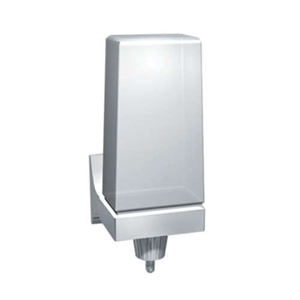

ASI 0356 Liquid Soap Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $27.30
Our Price: $15.00
Savings: $12.30
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 0356
Qty:

Description Technical Specs A Note from the Manufacturer

ASI 0356 Surface Mounted Manual Push Up Liquid Soap Dispenser, 24 oz, Translucent Soap Container
Soap Recommendation
Liquid soap
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 150-3000

Construction
Surface Mounted Liquid Soap Dispenser (Push-up type) shall hold and dispense 24 oz (0.7 L) of liquid soap, lotion or detergent having a pH in range 7 ± 1.5 and viscosity in range 150-3000 cPa (mPa•s). Soaps containing reportable salts, chlorides and alcohols should be avoided. Unit shall be tamper resistant, chrome plated ABS plastic, a translucent white polyethylene soap container, and a corrosion resistant ABS dispensing valve with stainless steel spring.
Capacity: 24 oz.

Installation
Secure unit bracket to wall or partition using four (4) № 10 pan head self-threading screws (supplied). Container is secured to bracket with a threaded collar.

For compliance with 2010 ADA Accessibility Standards install unit so that bottom of unit is 48" maximum above finished floor (AFF). For general utility install unit 42" AFF or 8" minimum above counter top.

Operation
A measured amount of soap is manually dispensed by pushing up against valve. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit can be reloaded by unscrewing collar at base and removing soap container. Soap level is continuously visible and will feed properly until empty.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
