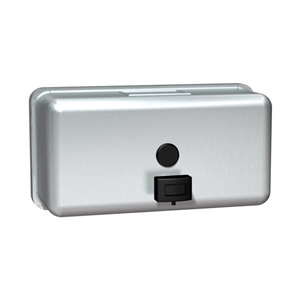

ASI 0357 Horizontal Surface Mount Manual Foam Soap Dispenser, 40 oz, Satin Finish

List Price: $82.00

Our Price: $45.10

Savings: $36.90

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 0357

Qty:

Description

Technical Specs

A Note from the Manufacturer

ASI 0357 Horizontal Surface Mount Manual Foam Soap Dispenser, 40 oz, Satin Finish

Soap Recommendation
Foam soap
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 1-100

Construction
Surface mounted horizontal foam soap dispenser is fabricated of 20 gauge stainless steel, alloy 18-8, type 304. All exposed surfaces shall be satin finish. Soap valve is constructed of a plastic valve body and push button with stainless steel and plastic internal parts. A tamper resistant sight gauge shall be provided. Unit shall have a hinged stainless steel refill door on top of the unit, which is opened with a special key. Soaps containing reportable salts, chlorides, and alcohols should be avoided.
Capacity: 40 oz.

Installation
Unit is secured to a wall plate which is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Secure unit to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with centerline of valve button no higher than 48" above finished floor (AFF).

Recommended for general installation is 42" (1066mm) AFF or 6" (152mm) minimum above wash basin.

Operation
Soap is manually dispensed by depressing push button. Valve operation complies with 2010 ADA Accessibility Standards and ANSI A.117.1 by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit is refilled through hinged door at top requiring special key (furnished) to open.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
