ASI 0390-R EZ Fill™ Soap Dispensing Multifeed Remote Control

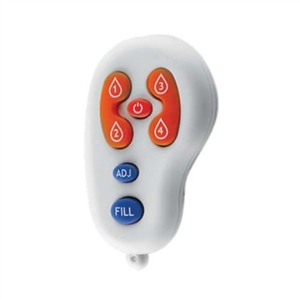

ASI 0390-R EZ Fill Liquid Soap Dispenser Remote Control

List Price: $58.70

Our Price: $32.30

Savings: $26.40

Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days

Product Code: 0390-R

Qty:

Description

Technical Specs

ASI 0390-R EZ Fill™ Soap Dispensing Multifeed Remote Control

Construction
Automatic liquid soap dispensing system remote control allows programming of all individual 0391 units. It is a handheld device fabricated of seamless molded plastic case halves closed with concealed snap latches and keypad buttons are soft touch TPR. It includes four (4) buttons that allow selection of dispenser volume ranges from 0.0007 oz to 0.08 oz, a factory setting reset button, a button to temporarily disable the sensor for servicing, and a button to activate the pump in continuous mode to prime the soap tube after refill.

Installation
Unit is supplied with batteries and requires no service maintenance. Keep in dry location. Key fob hole allows unit to be hung on hook or key-ring.

Operation
Remote is compatible with all EZFill™ Soap Dispenser units to adjust programmed dispense amount. Two (2) sector buttons with dual functions allow selection of dispense volume ranges, identified as “1”, “2”, “3”, “4” with droplet icon. Separate button, marked “ADJ”, resets unit to factory default condition. An additional feature is EZFill™ assist pump priming after soap refill by button press “FILL”. Continuous run mode (1 minute time-out unless “FILL” pressed again to terminate cycle) facilitates delivery of fresh soap to dispenser. Button press “ON-OFF” suspends operation for 1 minute or until button repressed to restore operation. Hold remote directly in front of sensor to avoid possible interference with adjacent dispenser units, at a distance of 5" ± 1" (127 ± 25) to button-press initiate any of the commands. Each successful command implementation will be confirmed by LED flashes. Refer to Owner’s Manual (supplied with unit) for complete description of LED flash codes and features.

Refer to Owner’s Manual (supplied with unit) for complete description of LED flash codes and features.

Options
Model 0391-1A Universal Stand Alone Model, Battery Operation
Model 0391-1AC Universal Stand Alone Model, AC Adapter Operation
Model 0391-6-1A Universal Stand Alone Model, Battery Operation, Six Pack
Model 0391-6-1AC Universal Stand Alone Model, AC Adapter Operation, Six Pack
Model Prefix 0390 is for multi-feed kit option. Contact us for more details.
