Construction

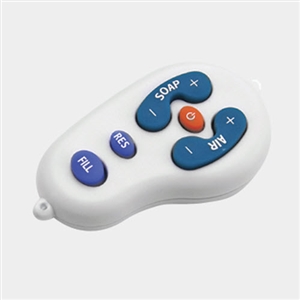

Automatic foam soap dispensing system remote control allows programming of all individual 0394 units. It is a handheld device fabricated of seamless molded plastic case halves closed with concealed snap latches and keypad buttons are soft touch TPR. It includes several buttons; a dual function button allows selection of soap dispense volume, a dual function button allows adjustment of foam consistency, a factory setting reset button, a button to temporarily disable the sensor for servicing, and a button to activate the pump in continuous mode to prime the soap tube after refill.
Installation
Unit is supplied with batteries and requires no service maintenance. Keep in dry location. Key fob hole allows unit to be
hung on hook or key-ring.
Operation
Remote is compatible with all EZFill™ Foam Soap Dispenser units to adjust programmed dispense amount. Left sector
button, marked “SOAP”, allows selection of dispense volume, identified as “+” and “-”. Right sector button, marked “AIR”,
allows selection of air volume to adjust foam consistency, identified as “+” and “-”. Separate button, marked “RES”, resets
unit to factory default condition. Separate button, marked “FILL”, assists in pump priming after soap refill. Continuous run
mode (1 minute time-out unless “FILL” pressed again to terminate cycle) facilitates delivery of fresh soap to dispenser.
Button press “ON-OFF” suspends operation for 1 minute or until button re-pressed to restore operation. Hold remote directly
in front of sensor to avoid possible interference with adjacent dispenser units, at a distance of 5" ± 1" [127 ± 25] to button press
initiate any of the commands. Each successful command implementation will be confirmed by LED flashes.
Refer to
Owner’s Manual (supplied with unit) for complete description of LED flash codes and features.
Options Model 0394-1A Universal Stand Alone Model, Battery Operation, Bright Chrome Plated Finish
Model 0394-1A-41 Universal Stand Alone Model, Battery Operation, Matte Black Finish
Model 0394-1AC Universal Stand Alone Model, AC Adapter Operation, Bright Chrome Plated Finish
Model 0394-1AC-41 Universal Stand Alone Model, AC Adapter Operation, Matte Black Finish
Model 0393-1A Top Fill, Multi Feed Dispenser Head, Battery Operation, Bright Chrome Plated Finish
Model 0393-1A-41 Top Fill, Multi Feed Dispenser Head, Battery Operation, Matte Black Finish
Model 0393-1AC Top Fill, Multi Feed Dispenser Head, AC Adapter Operation, Bright Chrome Plated Finish
Model 0393-1AC-41 Top Fill, Multi Feed Dispenser Head, AC Adapter Operation, Matte Black Finish
Model 0390 is kit for multi-feed kit dispenser head option 0393-1A or 1AC. Includes 5 L container, Top Fill Tube, and Counter Fill Port with Cover Model Prefix 0390 is for multi-feed kit option. Contact us for more details.
|
