ASI 0412 18" W x 4" D Recessed Shelf, Satin Stainless Steel Finish
ASI 0412 18" W x 4" D Recessed Shelf

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $172.70
Our Price: $95.00
Savings: $77.70
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 0412
Qty:

Description Technical Specs

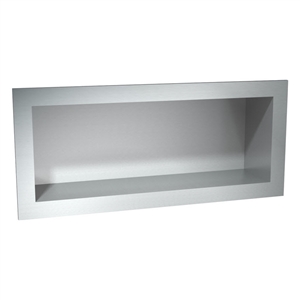

ASI 0412 18" W x 4" D Recessed Shelf, Satin Stainless Steel Finish

Construction
Recessed Shelf shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge. All exposed surface shall be No 4 Satin finish and be protected during shipment with a PVC film easily removable after installation. Face trim shall be 1" wide formed from one piece with no miters, welding or open seams and have a 1/4" square return to wall. Structural assembly of all components shall be of welded construction.

Installation

Rough Wall Opening RWO: 16-5/16" W x 6-5/8" H x 4" D

Unit is recessed mounted in wall using No 10 self tapping screws (by others) through concealed mounting holes.

For maximum usability and compliance with ADA Accessibility Guidelines, unit should be installed so that shelf is 54" maximum above finished floor (AFF) when clear side access is provided; 48" maximum AFF with forward reach access only provided and 46" maximum with side reach over an obstruction (ie: vanity).

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Options
Custom shelf lengths are available. Please contact one of our friendly washroom accessory experts for a quote and lead time information. Always a free call at 1-844-699-2779 or email [email protected]. We look forward to working with you.
