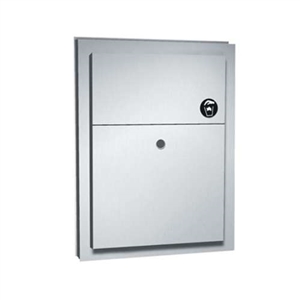

ASI 0472 Partition Mounted Dual Access Sanitary Napkin Disposal, 1.5 gal, Satin Finish
ASI 0472 Sanitary Napkin Disposal

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $288.60
Our Price: $158.80
Savings: $129.80
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 0472
Qty:

Description Technical Specs

ASI 0472 Partition Mounted Dual Access Sanitary Napkin Disposal, 1.5 gal, Satin Finish
For partition thickness 1/2" - 3". Capacity: 1.5 gallons

Construction
Partition mounted sanitary napkin disposal is fabricated of 18-8, type 304, 22 gauge stainless steel with a satin finish on all exposed surfaces. Doors are secured to containers with full length stainless steel piano hinges that are spring loaded to hold them in the closed position. Face trim is of one piece construction 1" wide with no welded miters and has square 1/4" returns with an adjustable range for partition thickness of 1/2" to 3".

Installation
Rough Wall Opening required is 11-3/8" W x 15-5/8" H x 1/2" to 3" Thick (289 mm x 397 mm x 13 to 76 mm)

Partition mount unit through precut partition cutout (PCO) using four (4) № 10 x 3/4" (M5 x 20) Philips flat head or oval head self tapping screws (supplied) per side (eight [8] total) through mounting holes provided through fixed mounting frame and adjustable mounting frame into suitably prepared partition (by others). Mounting holes are offset 1/2" (13) from opposite side frame holes for screw clearance. Note that cutout is 3/16" (Ø4.8) above cabinet door top and 13/16" (21) below mounting flange top edge. Mounting flanges adjust to accommodate partition thickness of 1/2" (13) minimum to 3" (76) maximum.

For compliance with ADA Accessibility Guidelines and maximum usability install unit with top of disposal door 33" (864) max AFF and 24" (610) min AFF and 27" (686) to center line of cutout from rear wall.

Operation
User pushes door to deposit waste. Doors are self closing and operate independently. Unit is emptied by removing bottom waste container and inverting over collection bag.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
