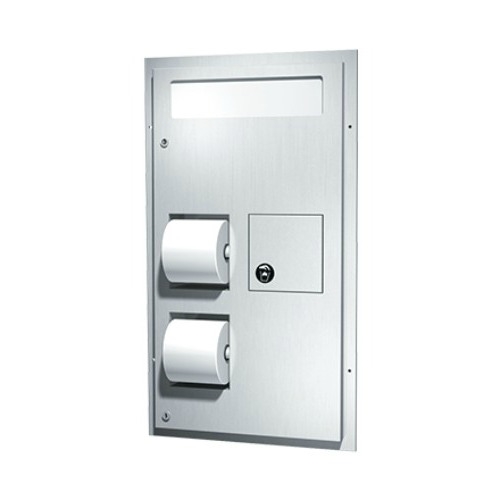

ASI 0481 Reverse Partition Mtd Napkin Disposal, Seat Cover Disp, and Toilet Tissue Disp
ASI 0481-R Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $942.90
Our Price: $518.60
Savings: $424.30
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 0481-R
Qty:

Description Technical Specs

ASI 0481 Reverse Partition Mounted Dual Access Napkin Disposal, Seat Cover Dispenser, and Toilet Tissue Dispenser - Satin Finish
Does not allow for grab bar to go over unit

Construction
Partition mounted seat cover and toilet paper dispenser with sanitary napkin disposal is fabricated of type 304 stainless steel alloy 18-8. The face trim mounting flanges are 22 gauge of one piece construction 1" wide with no welded miters and has square 1/4" square returns to face of partition. The door is connected to cabinet with a full length piano hinge and held closed with a tumbler lock keyed like other ASI washroom equipment. Disposal door is hung on spring loaded hinges. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Two (2) R-004 rollers are included. All exposed surfaces are satin finish.

Installation
Partition Cut Out required is 15-1/2" W x 28-7/8" H x 1/2" to 2" thick partitions (394 x 733 x 13 to 51)

Mount unit in partition using No. 10 x 3/4" self tapping screws (supplied) through holes provided. Holes in flanges are offset to prevent screw interference. Install unit so that top of face trim is 57" to 61" above finished floor. Note: partition cut out is 7/8" below top of face trim.

Operation
Toilet paper rolls, paper seat covers, and waste removal are serviced by unlocking and opening the door. Seat covers are self feeding until supply is depleted. Seat cover dispenser holds and dispenses 1000 paper seat covers. Toilet tissue dispenser holds and dispenses four (4) standard or four (4) 4-1/2" x 5-1/4" diameter tissue rolls. The spindles are vandal resistant and only accessible when door is opened. The napkin disposal is 1.3 gallons.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
