ASI 04813-HC Partition Mtd Napkin Disposal and Toilet Tissue Disp, Satin Finish

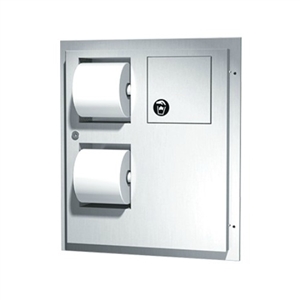

ASI 04813-HC Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $652.10
Our Price: $358.60
Savings: $293.50
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 04813-HC
Qty:

Description Technical Specs

ASI 04813-HC Partition Mounted Dual Access ADA Compliant Napkin Disposal and Toilet Tissue Dispenser- Satin Finish
One side mounts flush on barrier free compartment side to allow grab bar clearance

Construction
Partition mounted dual access toilet paper dispenser and napkin disposal is fabricated of type 304 stainless steel alloy 18-8. The face trim mounting flanges are 22 gauge of one piece construction 1" wide with no welded miters and has square 1/4" returns to face of partition. The flange on the barrier free side is flush with face of unit to permit flush mounting behind grab bar (not included). The door is connected to cabinet with a full length piano hinge and held closed with two tumbler locks keyed like other ASI washroom equipment. Sanitary Disposal door is hung on spring loaded hinges resting at a closed position. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Four (4) R-004 rollers are included. All exposed surfaces are satin finish.

Installation
Partition Cut Out required: 15-1/2" W x 18-1/4" H x 1/2" to 3-3/4" thick partition (394 x 464 x 13 to 95)

Mount unit in partition using No. 10 x 3/4" self tapping screws (supplied) through mounting holes provided. Holes in flanges are offset to prevent screw interference. Install unit so that top of face trim is 34" to 37-5/16" above finished floor. Note: partition cutout is 7/8" below top of face trim.

Operation
Toilet paper rolls and waste disposal are serviced by unlocking and opening the door. Toilet tissue dispenser holds and dispenses four (4) standard or four (4) 4-1/2" x 5-1/4" diameter tissue rolls (two per side). The spindles are vandal resistant and only accessible when door is opened. The removable waste container is 1.3 gallons. Barrier baffle panels preserve privacy between stalls at all times.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
