ASI 0482-Reverse Recessed Napkin Disposal, Seat Cover Disp, and Toilet Tissue Dispenser

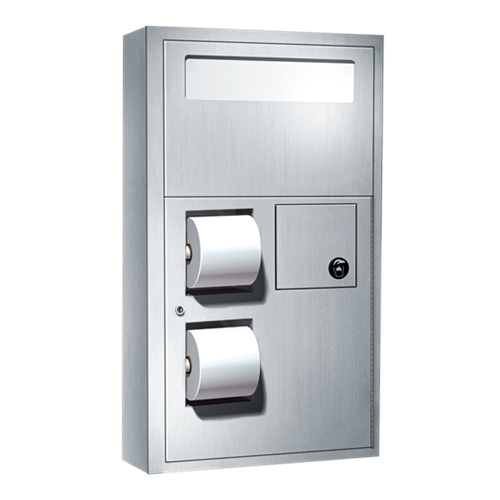

ASI 0482-R Toilet Paper Holder image
Grab Bar not included

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $744.60
Our Price: $409.50
Savings: $335.10
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 0482-R
Qty:

Description Technical Specs

ASI 0482-Reverse Recessed ADA Compliant Napkin Disposal, Seat Cover Disp, and Toilet Tissue Dispenser - Satin Finish
Construction
Recessed seat cover and toilet paper dispenser with sanitary napkin disposal is fabricated of 18 gauge type 304 stainless steel alloy 18-8. The face trim mounting flanges are 22 gauge of one piece construction 1" wide with no welded miters and has square 1/4" returns to wall. All exposed surfaces are satin finish. The door is connected to cabinet with a full length piano hinge and held closed with a tumbler lock keyed like other ASI washroom equipment. Disposal door is hung on spring loaded hinges. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Two (2) R-004 rollers are included.

Installation
Rough Wall Opening required is 15-3/4" W x 29" H x 4" D minimum (400 x 737 x 102)

Mount unit in wall recess using four (4) No. 10 self tapping screws (by others) through concealed mounting holes provided. Note: top of RWO (rough wall opening) is 13/16" below top of unit.

For 2010 ADA Accessibility Standards compliance the center line of the toilet paper dispenser should be located within 7" to 9" of the front of the commode and the toilet paper dispenser opening bottom should be above 15" minimum AFF while the Seat Cover Dispenser opening center line should be no higher than 48" maximum AFF. An optional grab bar (not provided) at 33"-36" AFF to the top of the bar should allow the service door top to clear the bottom of the bar when opening the door.

Operation
Toilet paper rolls, paper seat covers, and waste removal are serviced by unlocking and opening the door. Seat covers are self feeding until supply is depleted. Seat cover dispenser holds and dispenses 1000 paper seat covers. Toilet tissue dispenser holds and dispenses two (2) standard or two (2) 4-1/2" x 5-1/4" diameter tissue rolls. The spindles are vandal resistant and only accessible when door is opened. The napkin disposal is 1.3 gallons.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
