ASI 048234 Recessed Multi Roll Toilet Tissue Dispenser

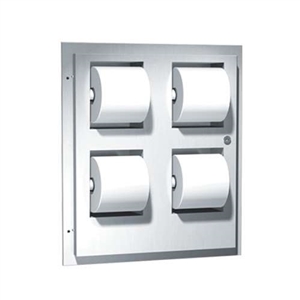

ASI 048234 Recessed Multi Tissue Roll Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $650.10
Our Price: $357.60
Savings: $292.50
Manufacturer: ASI
Availability: Made to Order - 6 Weeks


Free Shipping
Product Code: 048234
Qty:

Description Technical Specs

ASI 048234 Recessed Multi Roll Toilet Tissue Dispenser
Construction
Recessed toilet tissue dispenser fabricated of type 304 stainless steel alloy 18-8. Face and frame are 22 gauge with 1" wide face trim formed from one piece with no miters, welding or open seams and have 1/4" square return to face of wall. The door is 18 gauge, attached to the cabinet with a full length piano hinge and held closed with a tumbler lock keyed like other ASI washroom equipment. All exposed surfaces are satin finish.

Installation
Rough Wall Opening (RWO) required: 15-3/4" W x 18-3/8" H x 4" D (400 x 467 x 102)

Mount unit in wall recess using four (4) No. 10 self tapping screws (by others) through mounting holes provided. Note: top of RWO is 12/16" below top of unit.

For 2010 ADA Accessibility Standards compliance the center line of either bottom toilet paper dispenser should be located within 7" to 9" of the front of the commode and the toilet paper dispenser opening bottom should be above 15" minimum AFF (above finished floor). An optional grab bar (not provided) at 33"-36" AFF to the top of the bar must allow the service door top to clear the bottom of the bar approximately 1/4" when opening the door.

Operation
Toilet paper rolls are serviced by unlocking and opening the door. The spindles are vandal resistant and only accessible when door is opened. Holds four (4) standard 4-1/2" x 5-1/4" toilet paper rolls.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
