ASI 0485-Reverse Recessed Seat Cover and Toilet Tissue Dispenser, Satin Finish

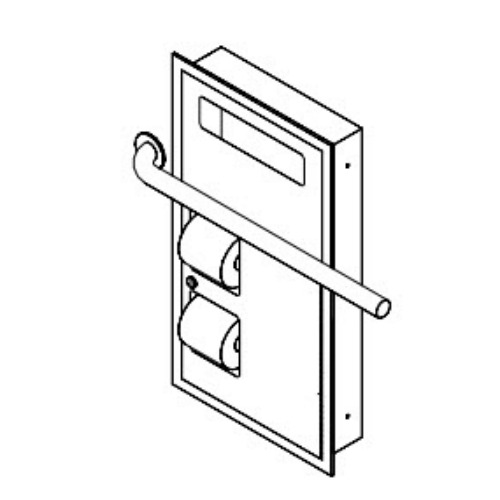

ASI 0485-R Toilet Paper Holder image
Grab Bar not included

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $595.30
Our Price: $327.40
Savings: $267.90
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 0485-R
Qty:

Description Technical Specs

ASI 0485-R Reverse Recessed Seat Cover and Toilet Tissue Dispenser, Satin Finish
Construction
Recessed seat cover and toilet paper dispenser is fabricated of 18 gauge type 304 stainless steel alloy 18-8. The face trim mounting flanges are 22 gauge of one piece construction 1" wide with no welded miters and has square 1/4" returns to wall. All exposed surfaces are satin finish. The door is connected to cabinet with a full length piano hinge and held closed with a tumbler lock keyed like other ASI washroom equipment. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Two (2) R-004 rollers are included.

Installation
Rough Wall Opening required is 15-3/4" W x 29" H x 4" D minimum (400 x 737 x 102)

Mount unit in wall recess using four (4) No. 10 self tapping screws (by others) through concealed mounting holes provided. Note: top of RWO (rough wall opening) is 13/16" below top of unit.

For 2010 ADA Accessibility Standards compliance the centerline of the TP Dispenser should be located within 7" to 9" (178-229) of the front of the toilet and the TP Dispenser opening bottom should be above 15" (381) minimum AFF while the Seat Cover Dispenser opening centerline should be no higher than 48" (1219) maximum AFF. An optional grab bar (not provided) at 33"-36" AFF to the top of the bar should allow the service door top to clear the bottom of the bar when opening the door.

Operation
Toilet paper rolls and paper seat covers are serviced by unlocking and opening the door. Seat covers are self feeding until supply is depleted. Seat cover dispenser holds and dispenses 1000 paper seat covers. Toilet tissue dispenser holds and dispenses two (2) standard or two (2) 4-1/2" x 5-1/4" diameter tissue rolls. The spindles are vandal resistant and only accessible when door is opened.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
