ASI 0548-9 Surface Mounted Sharps Disposal Cabinet Accomodates Sharps Collector P/N 305443

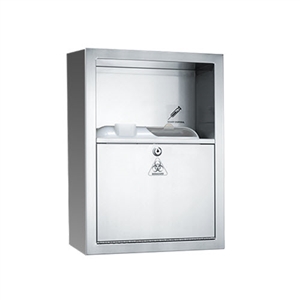

ASI 0548 Surface Mounted Sharps Disposal Cabinet

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $497.30
Our Price: $273.50
Savings: $223.80
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Product Code: 0548-9
Qty:

Description Technical Specs

ASI 0548-9 Surface Mounted Sharps Disposal Cabinet Accomodates Sharps Collector P/N 305443
Construction
Surface Mounted Sharps Disposal Cabinet and door shall be 18 gauge type 304 stainless steel alloy 18-8 and shall accommodate one Becton, Dickinson and Company (BD) Brand Sharps Collector model № 305443 (by others). Structural assembly of all cabinet components shall be of welded construction. Fixed trim shall be 1" wide formed from one piece of 18 gauge type 304 stainless steel with no miters, welding, or open seams and have 1/4" square returns to SM colllar (provided). Door shall be attached to the cabinet at bottom with a full-length 3/16" diameter stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Door shall be prominently marked with graphic label indicating Biohazard. All exposed surfaces shall be satin finish.

Installation
Unit is mounted on finished wall using four (4) № 10 screws (by others) through mounting holes provided in back of cabinet. For general utility, install unit with bottom of unit at 37-1/4" maximum above finished floor. SM collar is installed on cabinet prior to mounting on wall following procedure described on SM Collar Data Sheet.

Operation
Sharps (by others) are deposited through top of Sharps Collector (BD model № 305443, by others) as per instructions supplied with the specific model. Sharps Collector is replaced manually on cycle determined by maintenance needs. Locked cabinet prevents unauthorized removal.
