Construction

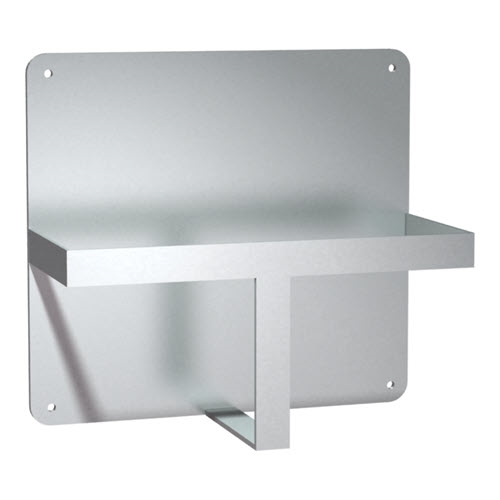

Surface Mounted Bedpan Rack shall hold one (1) conventional bedpan of types indicated on shop fabrication drawings. Unit shall be fabricated of alloy 18-8 stainless steel, type 304. Back plate shall be 18 gauge and holding straps shall be 16 gauge. All exposed surfaces shall have a No 4 satin finish and shall be protected during shipment with PVC film easily removable after installation.

Installation
Surface mount and secure rack to wall with four (4) No 10 self-tapping screws (by others) through mounting holes in back plate.

For compliance with ADA Accessibility Guidelines, install unit so that top of rack is 54" maximum above finished floor (MAX AFF) if clear floor side reach access is provided or 48" MAX AFF if clear floor forward reach access is provided or 46" MAX AFF if side reach over and obstruction is only provided (i.e. vanity).

Operation
Bedpan is stored vertically in the rack and held in place by a T-strap.
