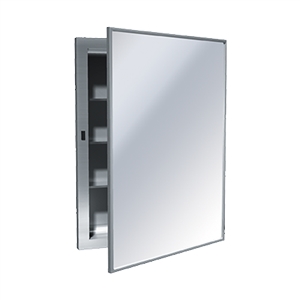

ASI 0952 Recessed Medicine Cabinet with Mirror and 3 Adjustable Shelves
ASI 0952 Recessed Medicine Cabinet with Mirror and Shelves

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $599.10
Our Price: $329.50
Savings: $269.60
Manufacturer: ASI
Availability: Usually Ships in 2-3 Bus. Days


Product Code: 0952
Qty:

Description Technical Specs

ASI 0952 Recessed Medicine Cabinet with Float Glass Mirror and 3 Adjustable Shelves
Construction
Recess Mounted Medicine Cabinet with Mirrored Swing Door shall have channel frame door and cabinet fabricated of 22 gauge stainless steel type 304 alloy 18-8. Cabinet interior shall have radius corners and shall be provided with three (3) removable stainless steel shelves. Interior face trim shall be one-piece construction with no miters and no exposed fasteners or welded seams. Mirror glazing shall be № 1 quality 1/4" thick polished float/plate glass and shall be warranted for fifteen (15) years against silver spoilage. Stainless steel door channel shall be hung on full length 3/16" diameter heavy duty stainless steel multi-staked piano hinge and shall be held closed by a magnetic catch. Cabinet shall have two (2) rubber door silencers. Cabinet can be right-handed swing door or left-handed swing door determined by the installation.

Installation
Unit is mounted in wall recess using four (4) № 10 pan head self-threading screws (by others) through concealed mounting holes provided in cabinet sides. For general utility mount unit 46" above finished floor (AFF) to bottom of unit or 12" above wash basin.

For compliance with ADA Accessibility Standards install unit so that bottom edge of mirror is 40" MAX AFF.

Note: Bottom edge of reflecting surface is 3/4" below rough wall opening (RWO)

Rough Wall Opening Required: 16" W x 22-3/4" H x 3-1/2" D minimum

Operation
Pull the door to access contents and manually pushes door to engage magnetic catch that holds door shut. Shelf spacing may be adjusted by removing shelves and inserting in any of five (5) internally embossed tracks on each side of cabinet interior.
