ASI 1204-48 48" Shower Curtain Rod with Flanges, 1-1/4" OD
ASI 1204-48 48" Shower Curtain Rod

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $45.42
Our Price: $35.89
Savings: $9.53
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 1204-48
Qty:

Description Technical Specs

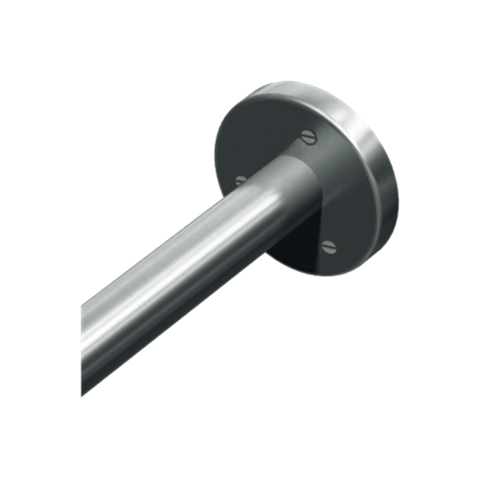

ASI 1204-48 48" Shower Curtain Rod with Flanges, 1-1/4" OD
*Shower curtain rod can be cut to length in the field.

Construction
Heavy duty shower curtain rod with flanges shall be fabricated of type 304 stainless steel alloy 18-8. Tubing shall be 1-1/4" diameter x 20 gauge with a satin finish. Flanges shall have three (3) dimpled 17/64" diameter holes to accept either M6 or No. 10 (M5) oval head screws (provided by others).

Installation
Install in straight section between (2) mounting flanges with no more than 1/4" total wall clearance. Rods longer than 72" require ceiling hanger (p/n 1204-C sold separately). For use with standard shower curtain model No.'s 1200 or 1200-V, sold separately, having 72" length and standard hooks (p/n 1200-SHU sold separately) install unit with rod centerline 74-1/2" maximum above finished floor or 67" above tub rim to obtain 6" bottom overlap. Seal screw holes in wall under flange to prevent any sprayed water from possibly infiltrating the wall structure.

Operation
Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others (by others). Rod will bend and pull from flanges if significant body weight is suspended.
