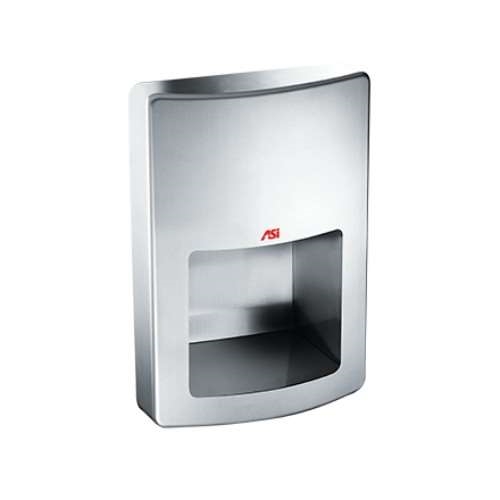

ASI 20199 Roval™ Semi Recessed Automatic High Speed Hand Dryer, Satin Finish
ASI 20199 Hand Dryer

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $1,264.40
Our Price: $695.40
Savings: $569.00
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 20199


Voltage*: 		120V
240V

Qty:
Description Technical Specs

ASI 20199 Roval™ Semi Recessed Automatic High Speed Hand Dryer, Satin Finish
Construction
Roval™ Collection Semi-Recessed Automatic Hand Dryer operates automatically from IR sensor that activates dryer when hands are placed in sensor zone. Cabinet full panel shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Cover shall be fabricated in one piece of 18 gauge (.048" [1,2]) thick type 304 stainless steel alloy 18-8. Hand drying recess shall be same grade and gauge. All exposed surfaces shall have a satin finish and shall be protected during shipment by PVC film easily removable after installation. Cabinet shall be 20 gauge corrosion protected steel with a 1/2" wide perimeter trim to lay flush against wall and shall have concealed pin-hex security screws to close cover. Motor and heating element shall have internal resetting automatic thermal protection. Fixed directional air vanes shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have approval and be listed under the re-examination services of Underwriters Laboratories, Inc.

Installation

Rough Wall Opening RWO 10-1/2" W x 15-1/8" H x 3-1/4" D

Mount unit cabinet in wall recess with four (4) № 10 [M5] screws (not supplied) into suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. For masonry walls use expansion bolts or anchors for 1/4" [M6] screws. See unit diagram for electrical service cable rough-in location. Electric service of 100-240VAC 20A 50/60 Hz (provided by others) is brought to RWO at location for dryer indicated on diagram and is hooked up (by others) in accordance with schematic and Owner’s Manual provided with unit. Electrical service is supplied and connected (by others) prior to installing cover. Cover is secured to cabinet with two (2) concealed pin-hex socket button head security screws (supplied).

For compliance with ICC/ANSI A-117.1-2003 and 2010 ADA Accessibility Standards install unit with top of dryer hand chamber 48" maximum above finished floor (MAX AFF) if clear floor reach access is provided or 46" MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over an obstruction (e.g. vanity or commode) with reach depth greater than 20" and less than 25" is only provided.

For general utility install unit so that top of dryer hand chamber is 44" to 50" AFF. Note that top of RWO is 3/8" below top of unit.

For installation of two or more dryers, dryers should be no closer than 24" on center.

Operation
Activates dryer by placing hands under sensor. Dryer automatically shuts off after time-out (Hold On) when user removes hands from sensor zone. Dryer automatically shuts off after time-out if unit is purposefully kept operating for longer than normal drying time (e.g. vandalism).

Warranty
Unit shall be warranted against defects in materials or workmanship for five (5) years per the manufacturer, American Specialties, Inc.
