ASI 20364 Roval™ Automatic Dispenser for Gel Hand Sanitizer or Liquid Soap, 34 oz, Satin Finish

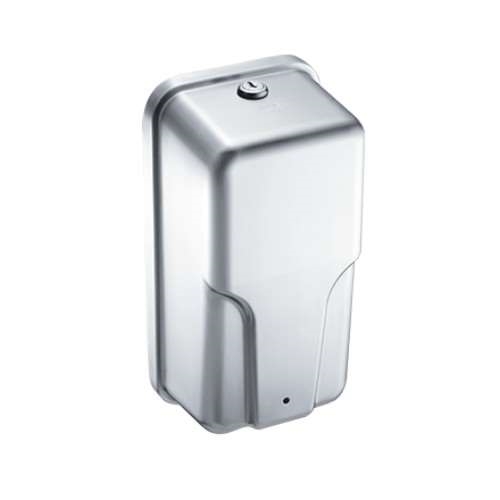

ASI 20364 Automatic Soap and Gel Hand Sanitizer Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $280.10
Our Price: $154.10
Savings: $126.00
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 20364
Qty:

Description Technical Specs A Note from the Manufacturer

ASI 20364 Roval™ Surface or Stand Mounted Automatic Liquid Soap / Gel Hand Sanitizer Dispenser, 34 oz, Satin Stainless Steel Finish
Soap Recommendation
Liquid Soap or Gel Hand Sanitizer
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 50-3500

Gel Hand Sanitizer Recommendation
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 3500-23000

Construction
Automatic Gel Hand Sanitizer / Soap Dispenser shall hold 34 oz [1 L] of liquid soaps, lotions, liquid hand sanitizer or gel hand sanitizer having a pH in range 7 ± 1.5 and soaps, lotions, or liquid hand sanitizer having viscosities in range 50–3500 cP (MPa•s) or gel sanitizers having viscosities in range 3500-23000 cP (MPa•s) and dispense in cycles of a single shot volume of 0.03 ± 0.002 oz (0.8 ± 0.05 ml). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry powered by six (6) AA size 1.5 V batteries (supplied by others) in a concealed compartment and locked inside unit bottom. Unit shall be 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish. Cover shall have lock keyed alike with other ASI washroom accessories. Unit shall have an LED to indicate function and operational condition on front face. Internal tank shall be translucent to show level of filled product supply remaining at any time when cover is opened and shall have an internal shut-off valve to facilitate filling and external storage of full tanks. Unit shall mount to wall on concealed base plate with screws secured under locked cover. Mounting template and Owner’s Manual shall be provided with unit in each carton. A self adhesive label is available separately for Owner to place on dispenser indicating sanitizer operation.
Capacity: 34 oz.

Installation
Secure concealed base plate to wall with four (4) self-threading screws (supplied: two (2) № 8 x 3/4" (M4.5 x 20) pan head & two (2) № 8 x 3/4" (M4.5 x 20) flat head) through mounting holes provided in plate into plastic wall anchors (supplied by others) or other suitable mounting system (provided by others). Install six (6) AA size 1.5 V cells (by others) in concealed battery compartment according to polarity indication and snap-latch battery door. Fill tank with appropriate viscosity soap to correct level and lock door. Locking door activates concealed button to initiate operation. Retain key provided for future access.

For compliance with 2010 ADA Accessibility Standards install unit so that bottom of unit is 48" maximum above finished floor.

Minimum distance to counter top is 12".

Unit may be installed on stand (p/n FS-0300 ordered separately) with mounting hardware supplied with stand.

Operation
Unit shall operate each time an object is positioned within the sensing distance of 3-1/8" ± 3/8" from unit bottom. A drop of 0.03 ± 0.002 oz of product supply will be pumped out of the nozzle on unit bottom for each activation while batteries are at suitable charge level (LED is not flashing) and correct viscosity soap is present in the tank. Door has lock to provide security and vandal resistance after each soap refill and battery change service interval.
Requires six (6) AA size 1.5 V cells (not included).

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
