For partition thickness 1/2" - 1-1/4". Capacity: 0.5 - 0.75 gallon
Construction

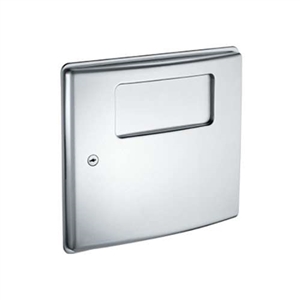

Recessed sanitary napkin disposal is fabricated of 18-8, type 304 stainless steel with a satin finish on all exposed surfaces. 22 gauge full face door is attached to cabinet at side with a concealed full length stainless steel piano hinge and is held closed with a tumbler lock keyed like other ASI washroom equipment. Face trim is of one piece construction 1-1/16" wide with no welded miters and has 1/8" radius return. Push door is held closed and hung on a full width concealed stainless steel piano hinge.
Installation
Rough Wall Opening required is 11" W x 9-1/4" H x 1/2" to 1-1/4" Thick (280 mm x 235 mm x 13 to 32 mm)
Mount unit in partition cut out with M4-0.7x25 or M4-0.7x40 machine screws (supplied) through concealed mounting holes provided to
suit partition thickness. Note that top of partition cut out (PCO) is 7/8′′ below top of frame.
For compliance with ADA Accessibility Guidelines install unit so that top of waste receptacle door is 48" maximum above finished floor (AFF) if clear floor reach access is provided. For general utility install unit with bottom edge 44-3/16" AFF.
Operation
User pushes door to deposit waste. Push door is self closing. Unit is emptied by removing can and inverting over collection bag. Locked door prevents unauthorized access or removal.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
|
|
|
|
|
|
