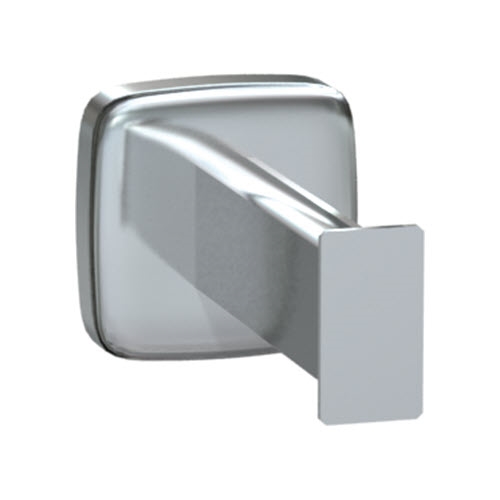

ASI 7301-S Satin Stainless Steel Towel Pin, Concealed Mount
ASI 7301-S Satin Stainless Steel Towel Pin

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $20.10
Our Price: $11.00
Savings: $9.10
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 7301-S
Qty:

Description Technical Specs

ASI 7301-S Satin Stainless Steel Towel Pin, Concealed Mount
Dimensions
Projects 3-1/2"

Construction
Towel Pin unit shall be fabricated of stainless steel alloy 18-8, type 304. Pin post shall be 1/2" x 1" rectangular tubing with formed mounting flange and bracket welded on end. Cap plate shall be 3/4" x 1-1/2" welded to outer end. Mounting plate shall be included and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright (-b) or satin (-s) as chosen by option indicated by code suffix.

Installation
Surface mount unit on door or wall using No 10 self tapping screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Hang post and flange assembly on mounting plate and tighten setscrew to lock unit to plate.

For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit with top of towel pin 48" maximum above finished floor (MAX AFF) if clear floor forward reach or if clear floor side reach access only is provided or 46" MAX AFF if side reach access over and obstruction (e.g.vanity) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over and obstruction with reach depth greater than 20" and less than 25" is only provided.

For general utility install pin with centerline of mounting plate between 55" and 68" AFF.

Options
Model 7301-B: Bright Finish

Accessories
ASI 7301-B Bright Polished Stainless Steel Towel Pin, Concealed Mount
Our Price: $13.70
ASI 7301-B Bright Polished Stainless Steel Towel Pin
