ASI 7303-S, Surface Mounted 5" Tall Spare Roll Holder, Satin SS Finish

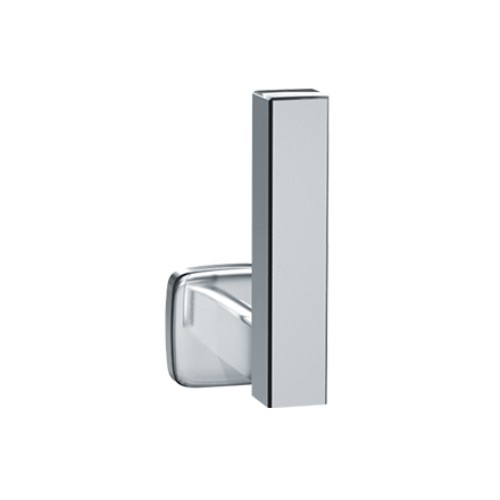

ASI 7303-S Toilet Paper Holder image
Bright Polished Finish Shown

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $38.80
Our Price: $21.40
Savings: $17.40
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 7303-S
Qty:

Description Technical Specs

ASI 7303-S, Surface Mounted 5" Tall Spare Roll Holder, Satin SS Finish
Construction
Spare toilet paper roll holder is fabricated of stainless steel alloy 18-8, type 304. The horizontal arm is 1/2" x 1" 21 gauge rectangular tubing with 18 gauge formed mounting flange and bracket welded on the end. The roll holder post is 1" x 1" 20 gauge square tubing with closed ends and is welded to the outer end. 18 gauge mounting plate and stainless steel set screw are provided. Satin Finish

Installation
Surface mount unit on wall using No. 10 self tapping screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Hang post and flange assembly on mounting plate and tighten setscrew to lock unit to plate.

For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines, install unit so that top of horizontal paper holder arm is between 19" minimum above finished floor (MIN AFF) to 40" maximum AFF (MAX AFF) and centerline of roll is no farther than 33" from back wall behind commode or between 7" and 9" from front of commode.
Recommended mounting height for general utility is 32" AFF to top of post.

Operation
One roll of toilet paper is placed over the post for use. When toilet paper roll is empty, replace with new roll by sliding over the top.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
