ASI 7314-H Omara Coll Surface Mtd Toilet Roll Holder with Hood, Satin Finish

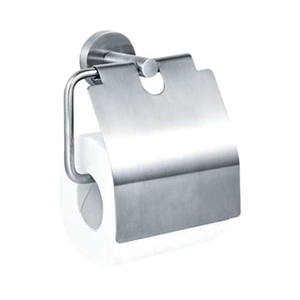

ASI 7314-H Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $82.70
Our Price: $45.50
Savings: $37.20
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 7314-H
Qty:

Description Technical Specs

ASI 7314-H Omara Collection Surface Mounted Toilet Roll Holder with Hood, Satin Stainless Steel Finish
Construction
Single toilet paper roll holder with hood is fabricated of stainless steel alloy 18-8, type 304. Roll holder bail is retained in post with a concealed set screw. The post is 22 gauge tubing with formed 18 gauge threaded bracket welded inside end. The post is bolted to the flange with concealed and locked M6 screw. The wall flange locks to the 18 gauge wall bracket with stainless steel M5 hex socket screw concealed on the bottom perimeter of the 1/16" thick flange. Both the wall bracket and flange have ribs for added strength. The wall bracket has two (2) mounting slots to accommodate M4 pan head screws (provided) and allow slight installation alignment adjustment. Hex L-key (M2.5) is provided to lock set screw to secure unit to wall bracket. All exposed surfaces are satin finish.

Installation
Surface mount unit to finished wall with two (2) M4 x 39 (No.6 x 1-1/2") pan head self tapping screws (provided) through holes provided in wall bracket into plastic wall anchors (provided) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) for wall conditions. Clip flange onto wall bracket and tighten set screw to lock it in place.

For compliance with 2010 ADA Accessibility Standards install unit so that top of paper holder is between 19" minimum above finished floor (AFF) to 48" maximum AFF and center line of post is between 7" and 9" from front of toilet. Recommended general mounting height is 32" AFF.

Operation
One roll of toilet paper is placed on bail type holder for ready availability and feed is uncontrolled. Bail holders swings freely in post to allow easy use and roll replacement. Hood protects roll from inadvertent contamination and swings independently of bail to maintain protective contact throughout supply level.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
