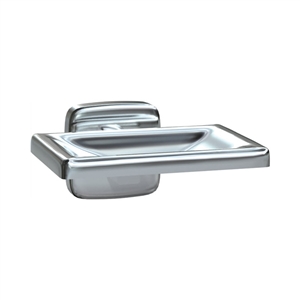

ASI 7320-S Surface Mount Soap Dish with Drain Holes, Satin Stainless Steel
ASI 7320-S Surface Mount Soap Dish with Drain Holes

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $22.90
Our Price: $12.60
Savings: $10.30
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 7320-S
Qty:

Description Technical Specs

ASI 7320-S Surface Mount Soap Dish with Drain Holes, Satin Stainless Steel
Dimensions
4-1/4" W x 4" D

Construction
Soap Dish With Drain Holes shall be fabricated of stainless steel alloy 18-8, type 304. Soap dish shall be of drawn seamless construction and shall be fabricated with integral ribs. Support post shall be 1" x 1/2" rectangular tubing with formed mounting flange and bracket welded on end. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Mounting plate shall be provided and shall be 18 gauge. Surface finish shall be bright (-B) or satin (-S) as chosen by option and indicated by code suffix.

Installation
Surface mount unit on wall using No 10 self tapping screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Hang post and flange assembly on mounting plate and tighten setscrew to lock unit to plate.

For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit with top of soap dish 48" maximum above finished floor (MAX AFF) if clear floor forward reach or if clear floor side reach access only is provided or 46" MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over an obstruction with reach depth greater than 20" and less than 25" is only provided.

For general utility mount unit with top of soap dish 8" to 12" above vanity basin.

Accessories
ASI 7320-B Surface Mount Soap Dish with Drain Holes, Bright Polish Stainless Steel
Our Price: $13.70
ASI 7320-B Surface Mount Soap Dish with Drain Holes
