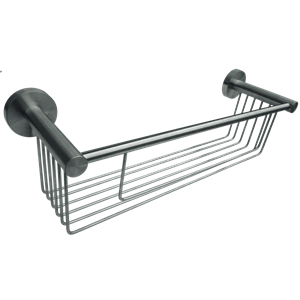

ASI 7381 4-7/16" D x 12-7/8" W Sundries Shelf Basket, Satin Stainless Steel Finish
ASI 7381 4-7/16" D x 12-7/8" W Sundries Shelf Basket, Satin Finish

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $100.70
Our Price: $55.40
Savings: $45.30
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 7381
Qty:

Description Technical Specs

ASI 7381 4-7/16" D x 12-7/8" W Sundries Shelf Basket, Satin Stainless Steel Finish

Construction
Sundries Shelf shall be type 304 stainless steel alloy 18-8 of welded formed round wire construction and shall have 25/64" diameter solid retainer cross bar as front top rim. Support side posts shall be 23/32" diameter solid rod with polished cast mounting flanges bolted on. Finish shall be satin on all visible surfaces. A stainless steel setscrew shall be provided on bottom perimeter of flanges to lock unit to mounting plates. Mounting plates provided shall be formed 19 gauge with integral ribs for rigid installation.

Installation
Surface mount unit on wall using four (4) № 6 x 1-3/8" (M4x35) self tapping screws (supplied) through holes provided in mounting plates into anchors (supplied) in suitably prepared walls (by others) or other suitable mounting hardware (by others) to suit wall conditions. Waterproof screw penetrations through tiles in wet area installations. Hang shelf post and flange assemblies on mounting plates and tighten setscrews to lock unit to plates with hex key provided.

For compliance with 2010 ADA Accessibility Standards install unit with top of shelf 48" maximum above finished floor (MAX AFF) if clear floor reach access is provided or 46" MAX AFF if side reach access over an obstruction (e.g. shower bench) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over an obstruction with reach depth greater than 20" and less than 25" is only provided.

For general utility mount unit with top rim of shelf 55" to 65" above shower floor.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
