ASI 7402-HBSM Surface Mtd ADA Compliant Toilet Paper Disp w/ Hood, Bright Polished

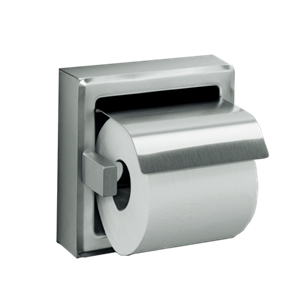

ASI 7402-HBSM Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $82.70
Our Price: $45.50
Savings: $37.20
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 7402-HBSM
Qty:

Description Technical Specs

ASI 7402-HBSM Surface Mounted ADA Compliant Toilet Paper Dispenser with Hood, Bright Polished Finish
For Double Roll Option see Model 74022-HBSM

Construction
Surface Mounted toilet paper holder with hood holds and dispenses all standard core roll tissue up to 6" diameter. It is a one piece construction fabricated of stainless steel type 304 alloy 18-8. The hood is attached to the top with a full length brass pivot rod. The outer shell will have two (2) dimpled holes for installation. Spindle is chrome plated high impact resistant ABS plastic that is spring loaded. All exposed surfaces are bright polished finish.

Installation
For Standard Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill two (2) 7/32" diameter clearance holes through tile and/or wallboard only. Use two (2) No. 10 stainless steel Philips flat or oval head self-tapping or wood screws (by others) of suitable length to penetrate blocking in wall by approximately 1/2". Tighten screws to hold unit tight against finished wall face.

Optional Method for Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill two (2) holes appropriate for expansion anchors into masonry substrate. Tap proper expansion anchors (provided by others to suit wall conditions) into wall to be flush with wall face. Use two (2) stainless steel Philips flat or oval head No. 10AB self-tapping screws (provided by others to suit wall conditions) through dimpled holes at back of shell. Tighten screws to hold unit tight against finished wall face.

For compliance with ADA Accessibility Guidelines install unit with centerline of roller 19" (483) min AFF to 42" (1067) max AFF and 7" (178) min to 9" (229) max from front of commode to centerline of dispenser.

Operation
Spring loaded spindle revolves freely and holds roll until core is removed.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Options
Model 7402-S is satin finished and recess mounted.
Model 7402-HS includes a hood and is recess mounted.
Model 7402-B is the same as 7402-S except with bright polish finish.
Model 7402-HB is bright polish finished with a hood and recess mounted.
Model 7402-HSSM is satin finished with a hood and surface mount.
