ASI 7402-S Recessed Toilet Paper Holder

Home > Toilet Tissue Dispensers > Single Roll >

ASI 7402-S Recessed ADA Compliant Toilet Tissue Dispenser, Satin Stainless Finish

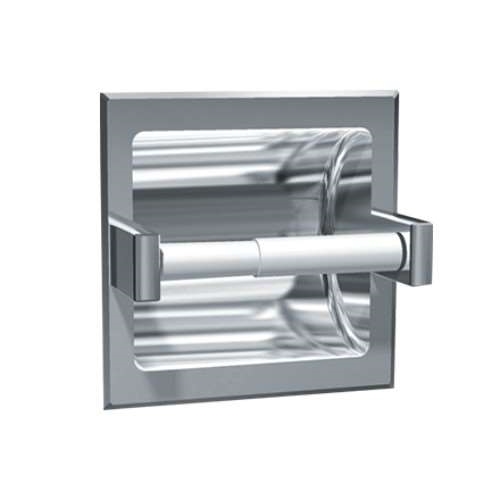

ASI 7402-S Recessed Toilet Paper Holder image

Alternative Views:

List Price: $36.00

Our Price: $19.80

Savings: $16.20

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 7402-S

Recessed Mounting Type*:

Wet Wall - need perforated lugs
Dry Wall - Unit will have dimpled holes

Qty:

Description

Technical Specs

ASI 7402-S Recessed ADA Compliant Toilet Tissue Dispenser, Satin Stainless Finish

For Double Roll Option see Model 74022-S

Construction
Recessed toilet paper holder holds and dispenses all standard core roll tissue up to 6" diameter. It is a one piece construction fabricated of stainless steel type 304 alloy 18-8. The outer shell either will have two (2) perforated lugs for wet wall anchoring or two (2) dimpled holes for dry wall installation. The spindle is chrome plated high impact resistant ABS plastic that is spring loaded. All exposed surfaces are satin finish.

Installation
Rough Wall Opening (RWO) required is 5-1/2" W x 5-1/2" H x 2" D

For Wet wall Recessed Mounting: Slop grout into rough wall opening. Apply grout to back of unit and on perforated lugs and push unit into opening to seat flange flush with wall face. Allow unit to set and grout to cure before use.

For Standard Dry Wall Recessed Mounting: Use two (2) No. 10 stainless steel Philips flat or oval head self tapping or wood screws (by others) of suitable length to penetrate blocking in back of RWO by approximately 1/2". Apply a continuous bead of silicone sealant (by others) behind flange. Tighten screws to hold flange tight against finished wall face. Wipe off excess sealant immediately.

Optional Method for Dry Wall Recessed Mounting: Order separate item Model No 39 dry wall clamp. Loosely attach clamp to the back of the unit with two (2) stainless steel Philips flat or oval head No. 10B, 10AB, or 10BP self tapping screws (provided by others to suit wall conditions) through dimpled holes at back of shell. Apply a continuous bead of silicone sealant (by others) behind flange. Insert into RWO and adjust clamp so that it grips inside wall surface through opening. Secure accessory to clamp and wall by tightening screws. Wipe off excess sealant immediately.

For compliance with ADA Accessibility Guidelines install unit with centerline of roller 19" min AFF to 42" max AFF and 7" min to 9" max from front of commode to centerline of dispenser.

Operation
Spring loaded spindle revolves freely and holds roll until core is removed.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Options
Model 7402-HS includes a hood.
Model 7402-HSSM includes a hood and is surface mount.
Model 7402-B is the same as 7402-S except with bright polish finish.
Model 7402-HB is bright polish finished with a hood.
Model 7402-HBSM is bright polish finished with a hood and surface mount.
