ASI 74022-SSM Surface Mtd ADA Compliant Toilet Tissue Dispenser, Satin Finish

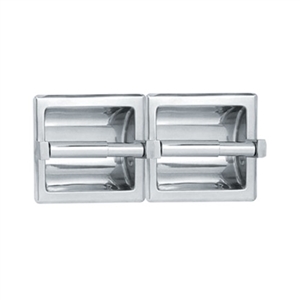

ASI 74022-SSM Toilet Paper Holder image
Base Model 74022-S Shown

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $123.40
Our Price: $67.90
Savings: $55.50
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 74022-SSM
Qty:

Description Technical Specs

ASI 74022-SSM Surface Mounted ADA Compliant Toilet Tissue Dispenser, Satin Stainless Finish
For Single Roll Option see Model 7402-SSM

Construction
Surface Mounted dual roll toilet paper holder holds and dispenses all standard core roll tissue up to 6" diameter. It is of stainless steel type 304 alloy 18-8. Each outer shell will have two (2) dimpled holes for installation. Spindles are chrome plated high impact resistant ABS plastic that are spring loaded. All exposed surfaces are satin finish.

Installation
For Standard Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill four (4) 7/32" diameter clearance holes through tile and/or wallboard only. Use four (4) No. 10 stainless steel Philips flat or oval head self-tapping or wood screws (by others) of suitable length to penetrate blocking in wall by approximately 1/2". Tighten screws to hold unit tight against finished wall face.

Optional Method for Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill four (4) holes appropriate for expansion anchors into masonry substrate. Tap proper expansion anchors (provided by others to suit wall conditions) into wall to be flush with wall face. Use four (4) stainless steel Philips flat or oval head No. 10AB self-tapping screws (provided by others to suit wall conditions) through dimpled holes at back of shell. Tighten screws to hold unit tight against finished wall face.

For compliance with ADA Accessibility Guidelines install unit with centerline of roller 19" (483) min AFF to 42" (1067) max AFF and 7" (178) min to 9" (229) max from front of commode to centerline of dispenser.

Operation
Spring loaded spindle revolves freely and holds roll until core is removed.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Options
Model 74022-S is satin finished and recess mounted.
Model 74022-HS includes a hood and is recess mounted.
Model 74022-B is the same as 7402-S except with bright polish finish.
Model 74022-HB is bright polish finished with a hood and recess mounted.
Model 74022-HBSM is bright polish finished with a hood and surface mount.
Model 74022-BSM is similar to 7402-SSM but bright polish finish.
