ASI 7403-S Toilet Tissue Dispenser with Storage Space for Extra Roll, Recessed

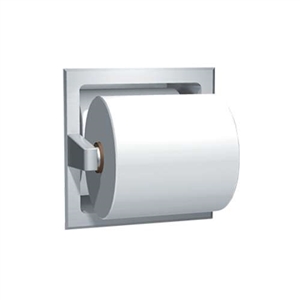

ASI 7403-S Recessed Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $80.50
Our Price: $44.30
Savings: $36.20
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 7403-S
Qty:

Description Technical Specs

ASI 7403-S Recessed Toilet Tissue Dispenser with Storage Space for Extra Roll, Satin Stainless Steel Finish
Construction
Recessed toilet paper holder holds and dispenses all standard core roll tissue up to 5-1/8" diameter. It is a one piece construction fabricated of stainless steel type 304 alloy 18-8. Spindle is chrome plated high impact resistant ABS plastic that is spring loaded. Posts are rust proof Zamac material. All exposed surfaces are satin finished.

Installation

Rough Wall Opening (RWO) Required: 5-1/2" W x 5-1/2" H x 4" D

Insert into RWO and mount unit in wall recess using No. 10 stainless steel Philips flat or oval head self-tapping screws or wood screws (provided by others to suit wall conditions) of suitable length to penetrate blocking at sides of RWO by approximately 1/2".

For compliance with ADA Accessibility Guidelines install unit with center line of roller 19" min AFF to 42" max AFF and 7" min to 9"max from front of commode to center line of dispenser.

Operation
Spring loaded spindle revolves freely and holds roll until core is removed. Storage for reserve roll is protected from access until the in use roll is empty.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
